Integrated Brushless Drive

Servo drive brushless IBD integrated

CMZ is focused on optimization and simplification of industrial processes, putting them at the core of its technological research.

IBD drive with integrated electronics and IEC 61131 programmability offers maximum control and power in a compact space. With the decentralization of the drive directly on the motor, the machine architecture is simplified: reduced wiring, more linear machine design, optimized and increasingly efficient processes.

The brushless motors are available with torque from 1.3 to 30 Nm. Each model can be developed with solutions designed upon the specific project of the manufacturer, considering both electronics and mechanics.

The strong technological integration between CMZ electronics and electromechanical components makes IBD drives some of the most innovative components for motion control, the expression of the best Made in Italy production.

IBD is suitable to be used both with CMZ FCT controllers and other different-branded controllers using CODESYS 3.5.

PROFINET RT is available on models IBD flange 60, 80 and 100.

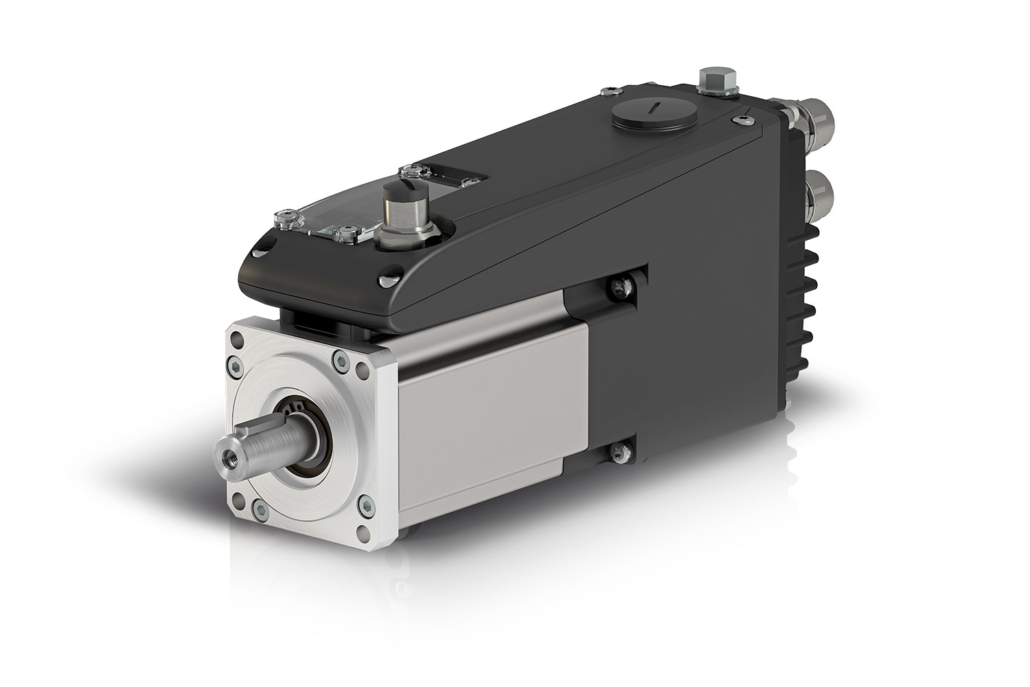

IBD Size 60mm

• Decentralized architecture with reduced wiring
• Programmability according to the standard IEC61131
• Maximum power concentration in a small size

Hardware Features

• Power supply 275 ÷ 730Vdc (560Vdc nominal)
• Control supply 24Vdc
• Continuous torque M0=1,3Nm
• Rated speed Vn=5000rpm
• Feedback HIPERFACE absolute encoder single or multiturn
• 3 digital inputs PNP 24V
• 2 digital outputs PNP 24V
• 1 programmable input/output PNP 24V
• Interface EtherCAT, CANopen, PROFINET RT
• Protection IP65
• Certification CE, UL

Functional Features

• Stand alone programmability according to the standard IEC61131
• Device profile DS402, Interpolated mode
• Positioning, Extended gearing function
• Homing, Capture
• Capture input
• PC parametrization tool
• I2t, Overload, Short-circuit Protection
• Overtemperature, Overvoltage Protection

SKU CMZ-182852
MPN 182852
EAN 85052000
