Integrated Stepless Drive

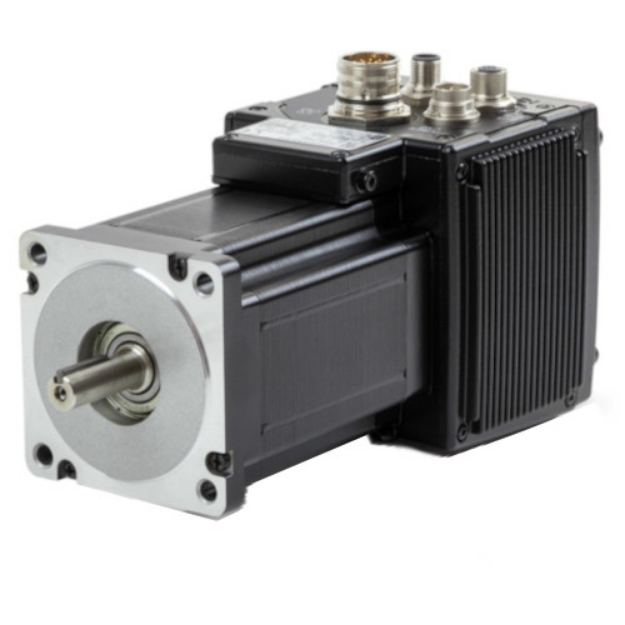

Integrated Stepless Drive, Flange 86, 120Vdc, 8A, 8,7Nm, incremental encoder 2000 pulse/turn, CAN Communication, ˜12 mm with key shaft, IP44

Free shipping on Web orders over $100

$1634.00

(Each excl GST)

On Request

SKU: CMZ-175396 Manufacturer part number: 175396 Manufacturer: CMZ

Qty:

Overview
Contact Us
Downloads

Integrated Stepless Drive

Hardware Features

Power supply 65-130Vdc [Nominal 120Vdc]
Control supply 20-130Vdc [Nominal 120Vdc]
Current Maximum current internally set (depends on motor)
Feedback Incremental encoder
Multiturn absolute encoder
Encoder output Incremental encoder output (only APD version)
N. 3 optoisolated PNP digital inputs
N. 2 differential (+24V or +5V/Line driver) digital inputs
Used as general purpose, encoder input or step-dir input
Analog input 1 Analogue IN +/-10V
Digital output 2 optoisolated PNP digital outputs 24Vdc max 200mA (external 24Vdc required)
Digital bidiretional I/O, 2 bidirectional optoisolated PNP digital IN/OUT
Interface Profibus-DP slave, CANopen, RS232/485 (ModBus)
Available versions Profibus-DP/CANopen (DS402)/ModBus RS485/Step/dir, ±10V with encoder output
Certifications CE

Functional Features

Device profile DS402, interpolated mode
Positioning, extended gearing function
Homing, capture
Stand alone programmability according to the standard IEC61131, ST language
Capture input
PC parametrization tool

SKU CMZ-175396
MPN 175396
EAN 85052000
