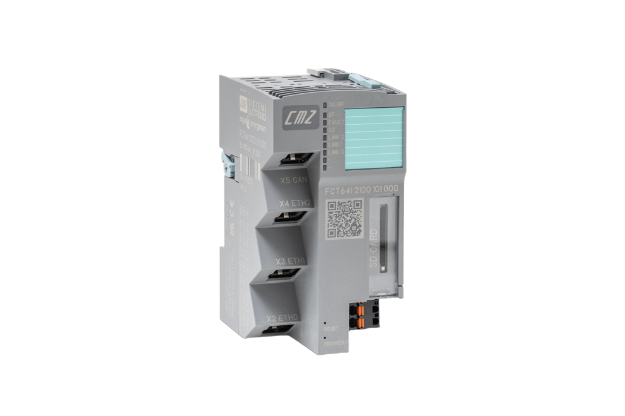

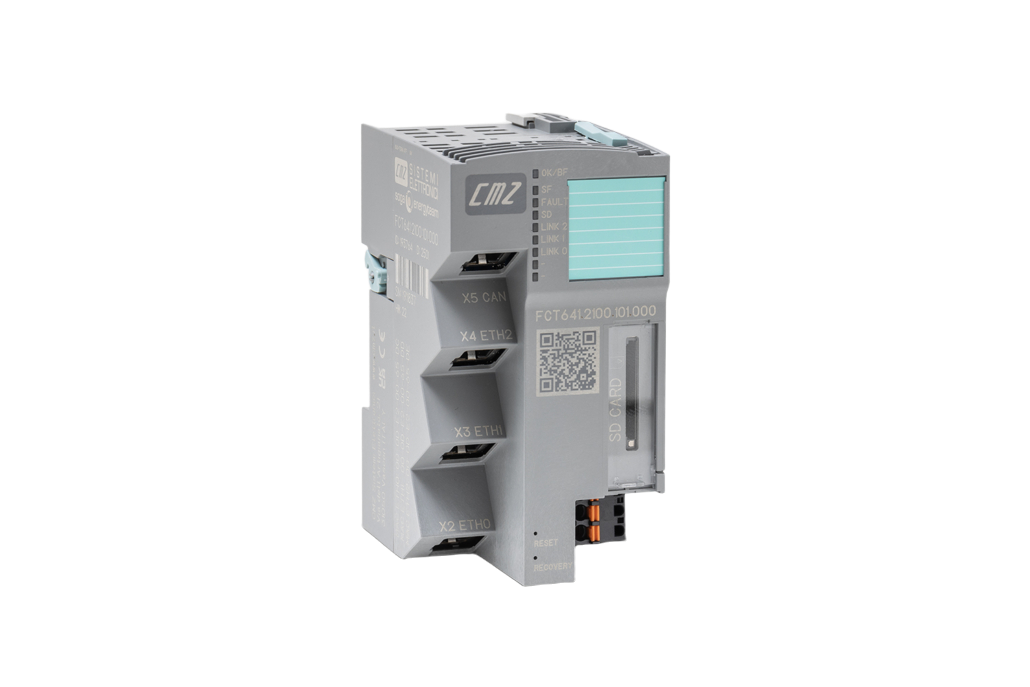

Motion Controller

Based on LINUX OS, FCT641 controller is designed for installation of CODESYS Service Packs with access to all updates and functions released by CODESYS. LINUX OS also allows a secure file system and the management of Security certificates.

FCT641 can be supplied with following Single Licenses by CODESYS that can be installed at order placement

• OPC-UA
• EtherNet/IP
• PROFINET
• FSoE

Processor

• CPU RISC dual core 64 bit
• 1.0 GHz three level cache

Power Supply

• 24V DC

Memory Capability

• 1GB Nand flash for storage
• 512 MB DRAM high bandwidth 64 bit 1666 MT/s
• 32 KB Ferromagnetic RAM (non-volatile PLC data)
• SD-Card

Communication Ports

• Depending on Model
• 1xRJ45 Ethernet 10/100 MBit TCP/IP (Debug)
• 2xRJ45 Ethernet 10/100 MBit (Fieldbus)
• 1xRJ45 CAN-Bus (CANopen Master)

Integrated I/O's

• 64 modules, each with a max of 16-bit IO (1024 digital) or 8 channel analog (512 analog)
• Variety of modules available

Fieldbus

• EtherCAT
• CANopen

Network Connectivity

• OPC-UA
• Modbus TCP
• Communications based on UDP-TCP
• WEB Server
• PLCHandler

General Features

• 9 LEDs
• RTC with CR2032 Battery
• Reset-Button / Restore-Button
• 0° / 40°C ambient temp.
• Fanless

Software Features

• IEC61131 CODESYS
• CMZ motion libraries
• CMZ applicatives

SKU CMZ-192457
MPN 192457
EAN 90321020
