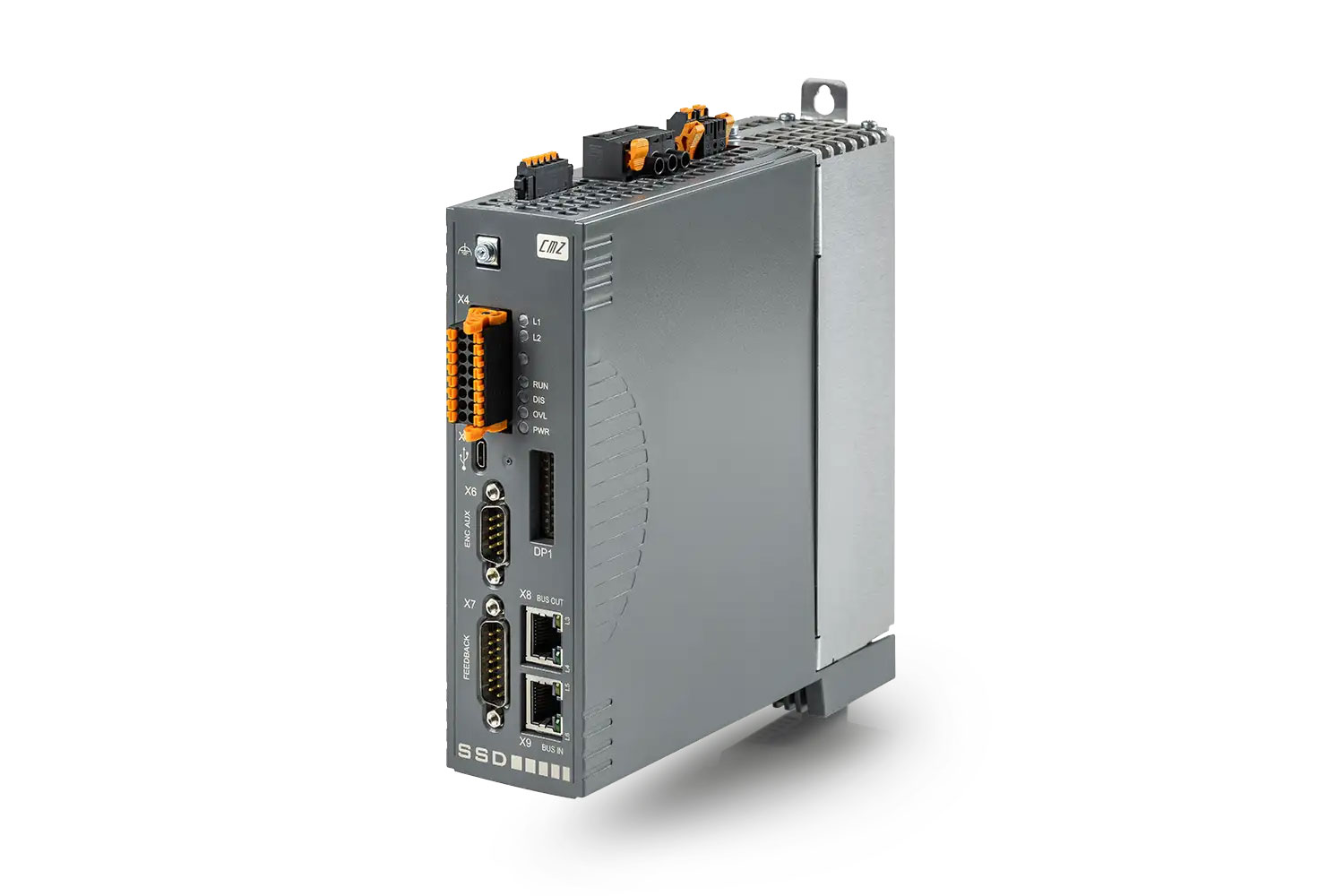

Stepless Servo Drive

Stepless Servo Drive, 230 Vac, 5A Nominal, with CANopen protocol and IEC61131 programmability, CanOpen with double function of RS485 (Modbus) - With Brake resistance

Free shipping on Web orders over $100

$1080.00

(Each excl GST)

On Request

SKU: CMZ-192817 Manufacturer part number: 192817 Manufacturer: CMZ

Qty:

Overview
Contact Us
Downloads

Servo drive stepless SSD stand alone

SSD is the new standalone stepper drive developed by CMZ with stepless technology. It's compact and highly performing: the perfect solution for stepper motors.

Features

Nominal 5A
Fieldbus EtherCAT / CANopen / PROFINET
Power Supply Without external contactor
I/Os Integrated 7 DI - 3 DO - 1 AI - 1 AO
Feedback Incremental encoder
Safety Hardware Disable Input
Multi-axis application based on CODESYS master controller and SSD CODESYS driver
Stand alone application without master controller (SMART DRIVE) based on integrated programmability IEC61131 (ST language)
Advanced Configuration & Tuning functionalities on SDSetUp

Technical

Logic supply 24Vdc
BUS Interface and fieldbus, CAN - CANopen DS402, ETC - EtherCAT CoE
Feedback TTL incremental encoder
IO 3 x DO 24Vdc PNP 200mA
7 x DI 24Vdc PNP (2 with touch probe functionality)
1 x AI +/- 10Vdc
1 x AO 0-10Vdc
Auxiliary encoder input 1 x TTL incremental encoder
Disable input 2 Channels
Braking resistor Optional 30W
Other Configuration port: micro USB
Dimensions L x H x P = 56 x 176 x 190 (mm)
Weight = 1.3Kg
Servo performances PWM frequency = 5/10kHz
Current loop BW = up to 1kHz
Motion loop BW = up to 100Hz
Current measurement resolution = 12 bit
Functionalities Internal IEC programmability (CMZ)
Configuration and tuning: SDSetUp via micro USB
Configurable IOs functionality

SKU CMZ-192817
MPN 192817
EAN 85052000
