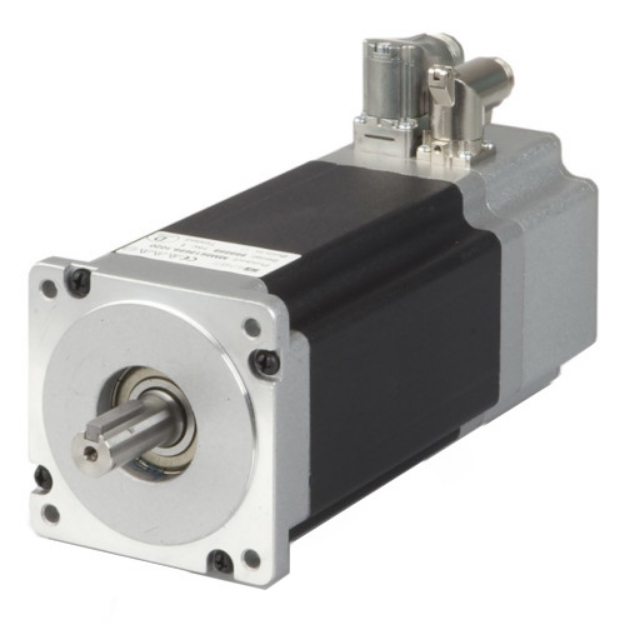

Stepless Servo Motor

MOT ENC. BOX 86 mm 12 Nm shaft 14 mm IS. 1500 V CONN CIRC M17 90°

Free shipping on Web orders over $100

$1017.00
(Each excl GST)
On Request
SKU: CMZ-192319 Manufacturer part number: 192319 Manufacturer: CMZ

CMZ provides its innovative technology based on vector control current modulation: STEPLESSTM This is a technology fully developed by CMZ for low speed applications.

Through the closed loop control, a stepper synchronous motor with encoder feedback can be controlled with modulated current by:

  • eliminating any problem due to the step loss
  • reducing the motor temperature.

Compared to the brushless solution, on the same motor size the Stepless technology provides a much higher torque at low speed. This makes it most suitable for a wide variety of applications.

CMZ stepper motors are available in 5 sizes with torque from 2.8Nm to 21Nm.

They can be supplied with incremental encoder, circular or AMP connectors, cables (length on request) and other optional features to meet all applicative demands.

CMZ STEPLESS technology is applied on stand alone and nearby drives.



SKU CMZ-192319
MPN 192319
EAN 85015100
