100 CY 3X0.25

Name: 100 CY 3X0.25
SKU: LAPP-0031031
Price: 5.50 AUD
Availability: InStock

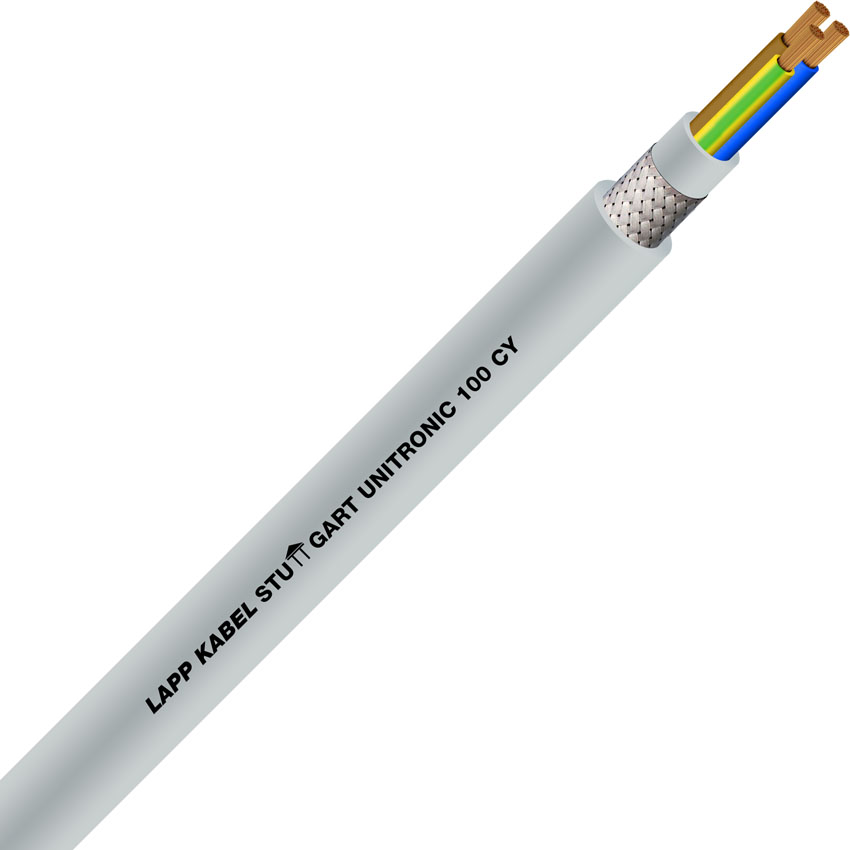

UNITRONIC® 100 CY, Screened Grey Control and Signal cable, 3X0.25

$5.50 (Per/m excl GST)

(Per/m excl GST)

Global Stock

SKU: LAPP-0031031 Manufacturer part number: LAPP-0031031 Price breaks available:

Select or Type Quantity

SKU: LAPP-0031031 Manufacturer part number: LAPP-0031031 Price breaks available:

Free shipping on Web orders over $100

Overview
Downloads
Ask A Specialist

Application range

These control and signal cables are used in the milliampere range for computer systems, electronic control equipment, office machines, balances etc. and wherever the thinnest possible control cables are required.

Product features

Robust, flexible and resistant outer sheath
Small outer diameter despite high number of cores
Cable similar to UNITRONIC® 100, but with copper braiding
Flame-retardant according IEC 60332-1-2
3 cores with earth wire (green-yellow)
2 cores (black/blue)

Norm references / Approvals

Based on: VDE 0814 or VDE 0812

Product Make-up

Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
Core insulation made of PVC
Inner sheath made of PVC
For the cross section of 0.14 mm², a polyester tape is used underneath the screen braiding instead of the inner sheath.
Tinned-copper braiding
Outer sheath made of PVC
Outer sheath colour: grey (RAL 7001)

Temperature range

Occasional flexing: -5°C to +70°C
Fixed installation: -40°C to +80°C

SKU

LAPP-0031031

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Product Files

Type Name

Datasheet

LAPP-Main-Catalogue-2018-19 _ 276-277
