Connector (M12)

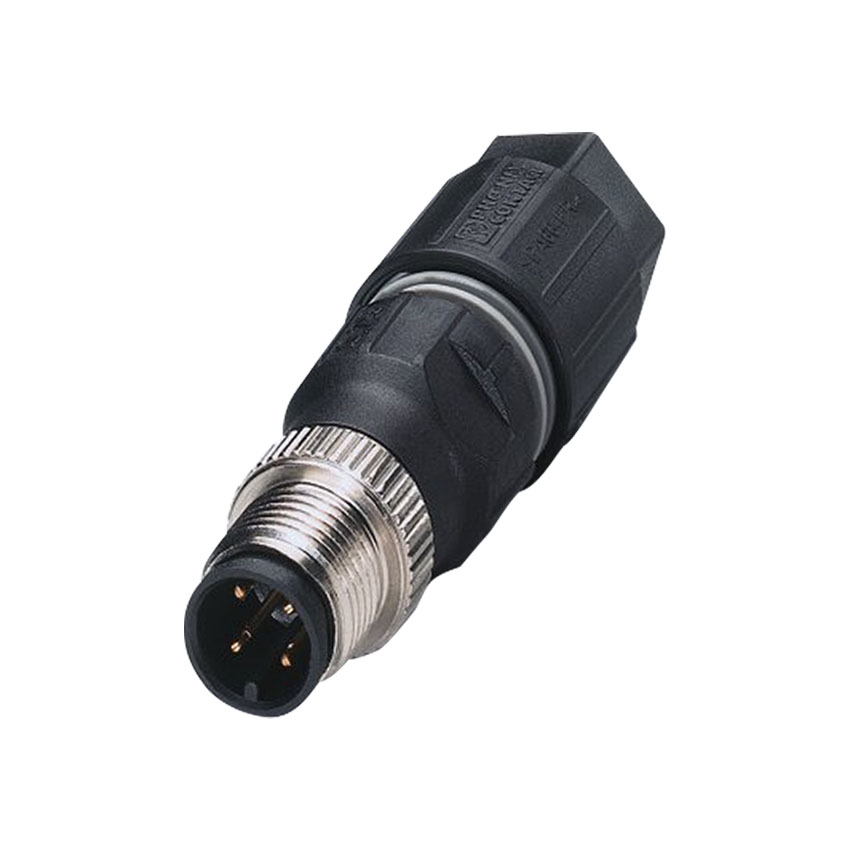

Connector (M12) 4 Pole Male with Fast Connect Technology (0.75 cable)

$32.70

(Each excl GST)
In Stock
Login for stock
Select or Type Quantity
SKU: LAPP-22260134 Manufacturer part number: 22260134 Manufacturer: UNITRONIC® Price breaks available:

Free shipping on Web orders over $100

Application range

  • Automation technology
  • Mechanical engineering
  • Plant engineering
  • Tool shop
  • Automotive industry

Benefits

  • Quick and easy on-site assembly
  • Creating individual cable lengths
  • Standardised interfaces
  • No special tools required for connecting the cables (fast-connect designs)

Product features

  • 4, 5 and 8-pin version
  • Screened and non-screened version
  • Fast-connect and screw connection design
  • Free of paint-wetting impairment substances

Coding

  • A-Standard

Contact surface material

  • CuSnZn

Contact material

  • CuZn

Protection rating

  • IP 65/IP 67 (IDC)
  • IP 67 (screw)

Ambient temperature (operation)

Plug/socket

  • -25°C to +80°C (IDC)
  • -25°C to +85°C (piercing)
  • -40°C to +85°C (screw)

SKU
LAPP-22260134
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Locally Stocked in Australia Only Show Stocked Items
Locally Stocked in NZ Only Show Stocked Items
Number of Conductors 4
Gender Male
*
*
*
