Connector (M12)

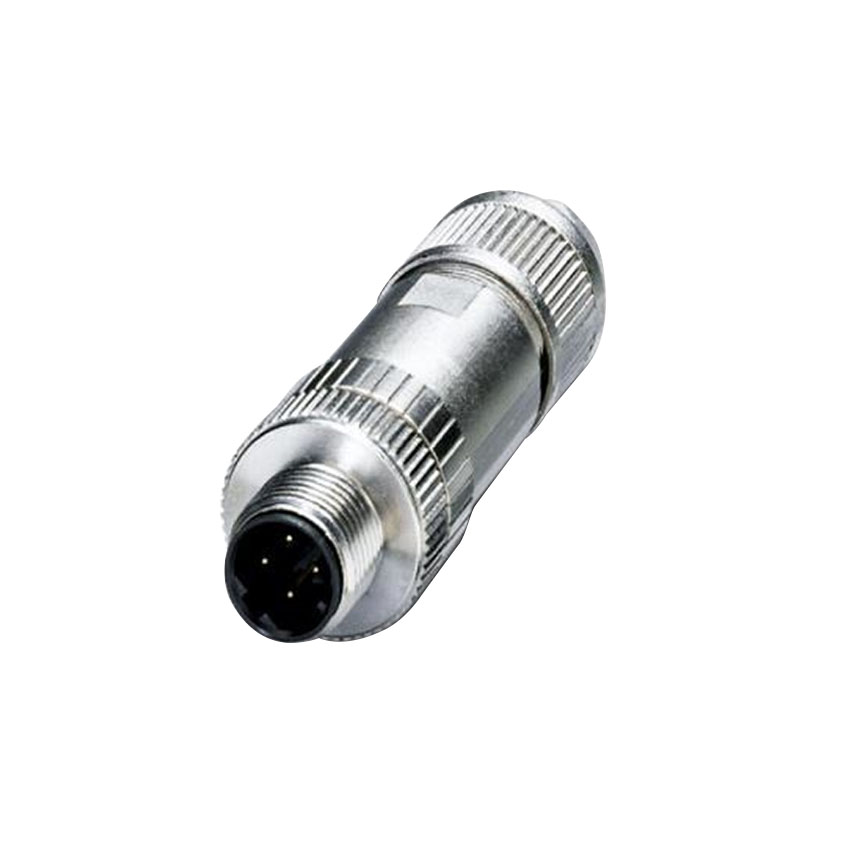

Connector (M12 D-Coded) 4 Pole Male screw termination (Ethernet)
Manufacturer: UNITRONIC
SKU: LAPP-22260820
Manufacturer part number: LAPP-22260820
Availability: Log in to check exact stocks
$ 49.40
  • 1 - 24 $49.40
  • 25 - 99 $46.93
  • 100 + $44.46
Free Shipping

For more information regarding this product please call us on 1800 931 559

Bus system connector, plug, straight, 4-pos., M12 shielded, D-coded,
fast connection system, cable diameter max. 8 mm

Technical data

Lapp article number: 22260820
Nominal current IN: 1.75 A
Nominal voltage UN: 60 V
Number of poles: 4
Coding: D-coded
Contact resistance: 5 mO
Ambient temp. min. (operation)-plug/socket: -40 °C
Ambient temp. max. (operation)-plug/socket: 85 °C
Surge voltage category: II
Pollution degree: 3
Degree of protection: IP67
Status display: No
Connection type: Fast-connect connection type
Diameter min: 4 mm
Diameter max: 8 mm
Contact carrier material: PA 66
Material of grip body: Zinc die-cast, (nickel-plated)
Material, knurls: Nickel-plated brass
Sealing material: Neoprene
Inflammability class acc. to UL 94: V0
Tranmission characteristics: CAT.5 (IEC 11801:2002), CAT.5e (TIA 568B:2001)
Conductor cross section AWG 22....26


SKU
LAPP-22260820

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.


Type Format Size
Datasheet 0.13 MB
Installation Guide 2.26 MB
Products specifications
Locally Stocked in Australia Only Show Stocked Items
Locally Stocked in NZ Only Show Stocked Items
Number of Conductors 4
Gender Male

Type Format Size
Datasheet 0.13 MB
Installation Guide 2.26 MB
Products specifications
Locally Stocked in Australia Only Show Stocked Items
Locally Stocked in NZ Only Show Stocked Items
Number of Conductors 4
Gender Male
