Connector (M12)

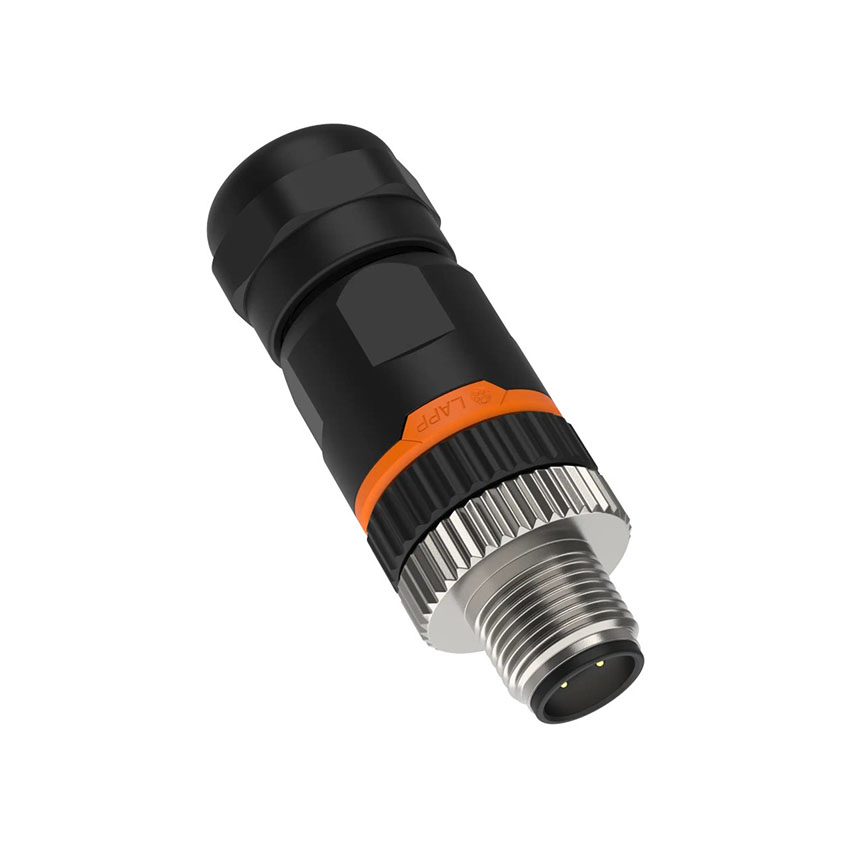

Connector (M12) 5 Pole Male screw termination

Free shipping on Web orders over $100

$29.30

(Each excl GST)

In Stock

Quantity Breaks

50+

250+

$29.30

SKU: LAPP-22260129 Manufacturer part number: 22260129 Manufacturer: UNITRONIC®

Qty:

Overview
Specifications
Contact Us
Downloads

General technical data

Number of poles: 5
Coding: A - Standard
Connection type: Screw connection
Degree of protection: IP67
Pollution degree: 3
Status display: No
Inflammability class acc. to UL 94: V0
Surge voltage category: II
Material of grip body: PBT
Material, knurls: Zinc die-cast, (nickel-plated)
Sealing material: NBR
Contact material: CuZn
Contact carrier material: PA 66
Nominal voltage UN: 60 V
Nominal current IN: 4 A
Contact resistance: 8 mO
Insulation resistance: 100 mO
Diameter (min) in mm: 4 mm
Diameter (max) in mm: 6 mm
Conductor cross section AWG/kcmil min.: 24
Conductor cross section AWG/kcmil max.: 18
Conductor cross section stranded min: 0.25 mm²
Conductor cross section stranded max: 0.75 mm²

Connector data

Connection type: Screw connection
Coding: A - Standard
Material, knurls: Zinc die-cast, (nickel-plated)
Material of grip body: PBT
Sealing material: NBR
Contact surface material: CuSnZn
Contact carrier material: PA 66
Contact resistance: 8 mO

SKU

LAPP-22260129

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
