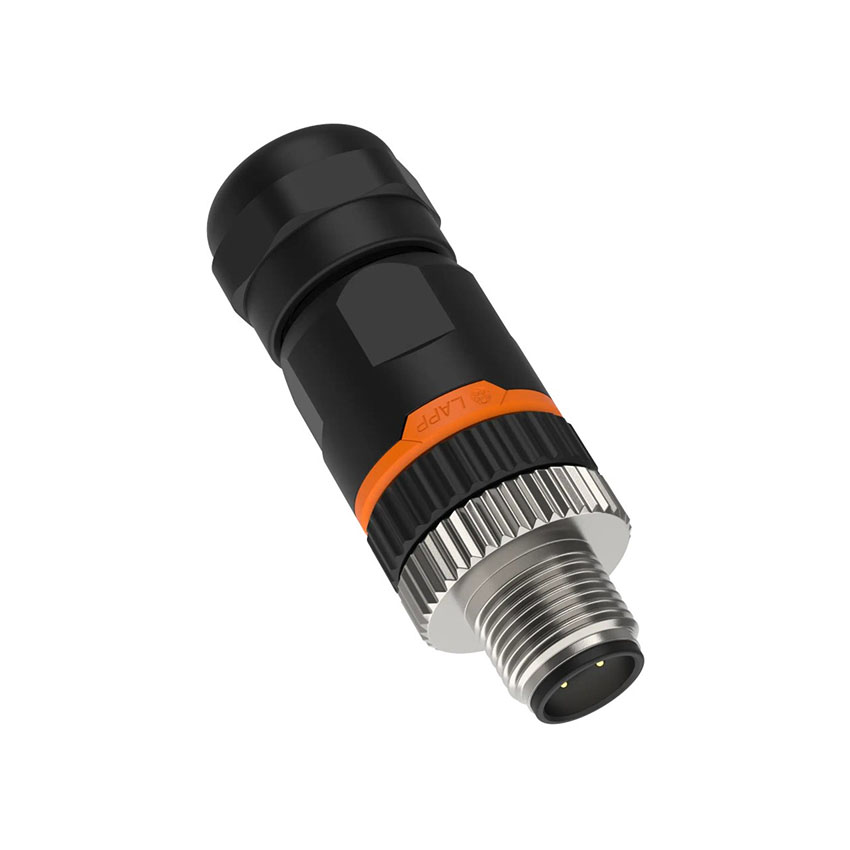

Connector (M12)

EPIC^® Sensor M12A Screw termination

Field mountable connectors M12

Off into the field: be it in the F&B, mechanical engineering or intralogistics areas, the M12A data connector is an expert in the field of signal transmission at sensor-actuator level. With this plastic connector, cable assembly can be carried out without any special tools whatsoever thanks to the screw connection. Numerous variants are available.

Benefits

• High stability thanks to impact-resistant polyamide.
• The service-friendly screw connection makes assembly possible without a special tool, and is suitable for connections which need to be detached again.
• When connected, protection class IP 67 can be achieved.
• Available in different designs and with different pole configurations.

Application range

• Can be used universally at machine interfaces for many applications in data and signal transmission in the low-frequency range.
• Typical application areas are sensors and actuators at field level.
• Good oil and chemical resistance.

Product features

• 4, 5 and 8-pin version
• Screened and non-screened version
• Screw connection or insulation displacement contacts (IDC)
• PWIS-free

Technical

• Material contact CuZn
• Contact surface CuSnZn
• Protection rating IP67
• Ambient temperature (operation) -25°C to +85°C
• Contact material copper alloy
• Contact surface material Au (gold)
• Coding A-standard

SKU LAPP-381166320
MPN 381166320
EAN 4064728618301
