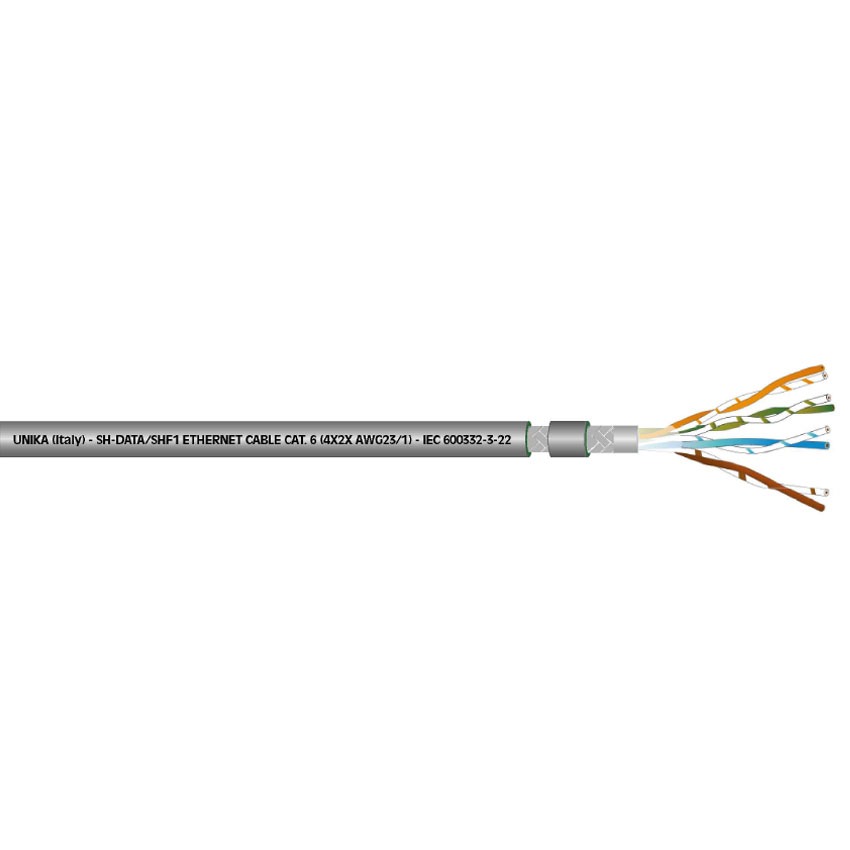

CAT6 Marine 4x2x23 AWG

SH-DATA Ethernet Cat.6

Ethernet cable approved for marine and offshore use

• Marine-certified Cat 6 Ethernet cable
• Designed for harsh offshore environments
• Halogen-free and low-smoke
• Available in heavier 23 AWG
• Suitable for shipboard LAN systems, automation, and data networks
• Resistant to UV, oil, and seawater (SHF2 version)

Construction

• Conductors: bare copper 23 AWG.
• Insulation: foam-skin polyolefin.
• Pair shielding: aluminum/polyester tape on each pair.
• Overall shielding: braided tinned copper (specified with high coverage) plus an overall tape shield.
• Outer jacket: marine compounds (SHF1 / SHF2) with grey or black jacket options.

Fire performance

• Designed to meet key marine fire and smoke requirements (flame propagation, low smoke, and low corrosive/halogen-free behavior).
• IEC 60332-1-2 (flame propagation)
• IEC 60332-3-22 (bunched cable fire test)
• IEC 61034 (low smoke density)
• IEC 60754 (halogen-free, low corrosivity)

SKU LAPP-NP404AH
MPN NP404AH
