Click Gland M20

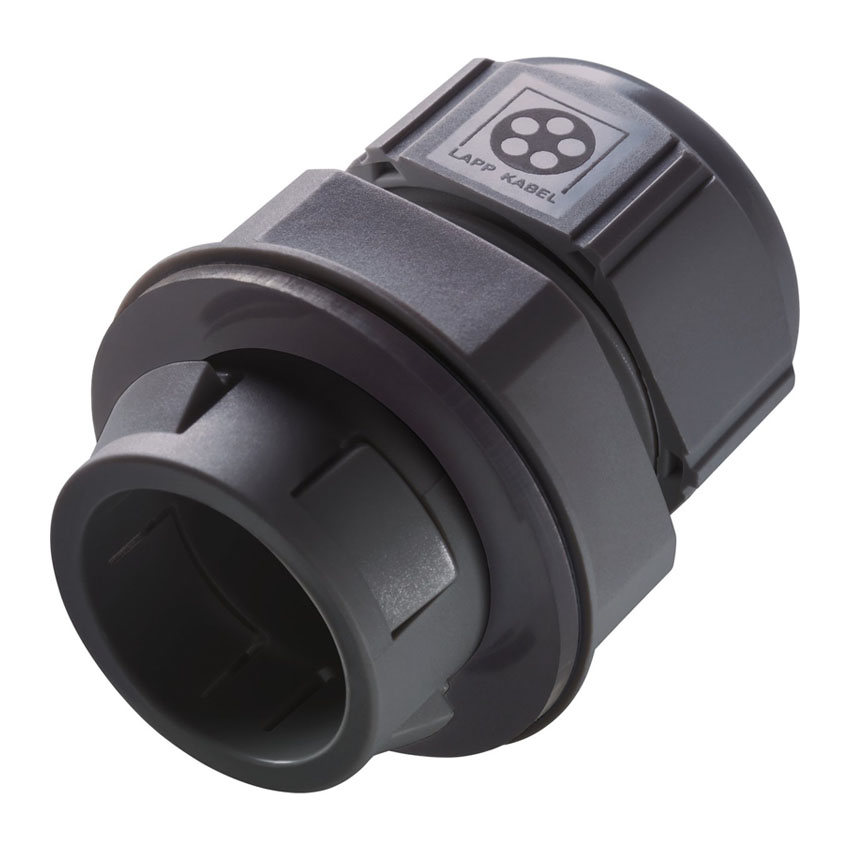

SKINTOP® Click M20 Black Gland for cables (7 to 13mm)

Free shipping on Web orders over $100

$4.04
(Each excl GST)
In Stock
Quantity Breaks
1+
100+
500+
$4.04
$4.04
$4.04
SKU: LAPP-53112883 Manufacturer part number: 53112883

SKINTOP® CLICK, plastic cable gland with time-saving CLICK system, simple, free assembly and vibration protection, no thread required

  • The most innovative cable insertion system in the market for a fast and highly flexible assembly. Simply click in - turn to the left - turn to the right - finished. The result: fixed, centred, strain-relieved fitting and maximum protection class in a few seconds.
  • In practical box available in the web catalogue

Benefits

  • Fewer parts, counter nut no longer needed
  • Save up to 70% of the time with the innovative CLICK system
  • Simple, free assembly in any position
  • Vibration protection
  • No thread required

Application range

  • Automation technology
  • Solar applications
  • Control cabinet manufacturing
  • Measurement, control and electrical applications
  • Air-conditioning technology

Norm references / Approvals

  • UL File Nr. E79903

Included

  • Included: disassembly tool

Material

  • Body: special polyamide
    Seal: special elastomer

Protection rating

  • IP 68 - 4 bar (M12)
    IP 68 - 5 bar (M16 - M25)
    IP 68 - 1 bar (M32)

Temperature range

  • Dynamic: -20°C to +100°C
  • Fixed: -40°C to +100°C

SKU
LAPP-53112883
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
