Integrated Brushless Drive

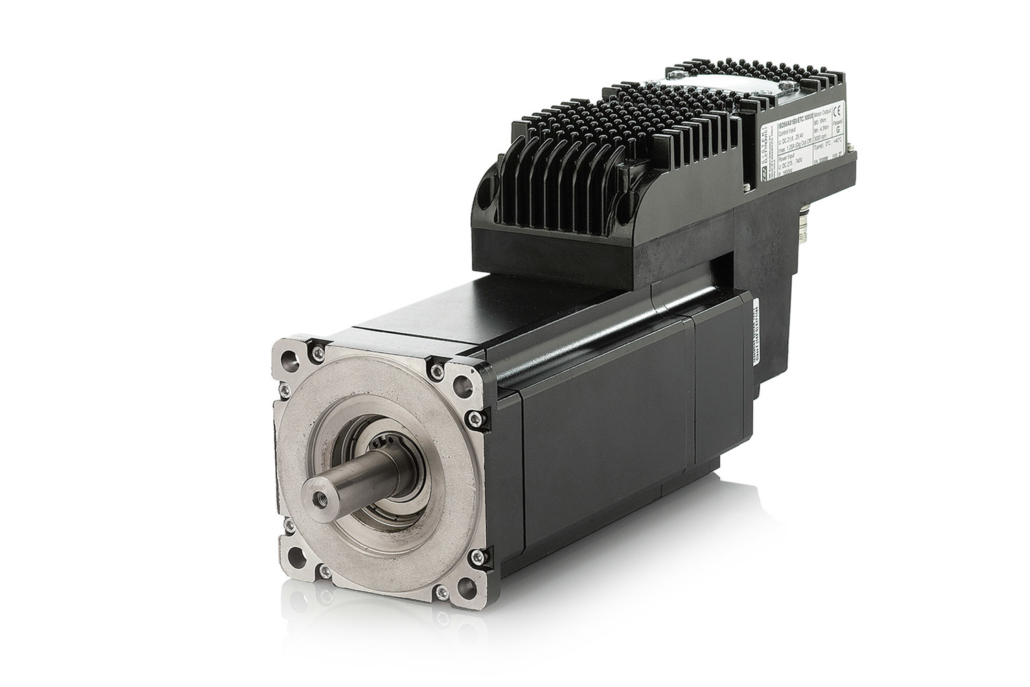

Integrated Brushless Drive flange 80 - 2,8 Nm with brake with key 3000rpm 560Vdc CAN absolute multi-turn 128 Sin/cos (SKM36)

Free shipping on Web orders over $100

$3914.00
(Each excl GST)
On Request
SKU: CMZ-175174 Manufacturer part number: 175174 Manufacturer: CMZ

Servo drive brushless IBD integrated

CMZ is focused on optimization and simplification of industrial processes, putting them at the core of its technological research.

IBD drive with integrated electronics and IEC 61131 programmability offers maximum control and power in a compact space. With the decentralization of the drive directly on the motor, the machine architecture is simplified: reduced wiring, more linear machine design, optimized and increasingly efficient processes.

The brushless motors are available with torque from 1.3 to 30 Nm. Each model can be developed with solutions designed upon the specific project of the manufacturer, considering both electronics and mechanics.

The strong technological integration between CMZ electronics and electromechanical components makes IBD drives some of the most innovative components for motion control, the expression of the best Made in Italy production.

IBD is suitable to be used both with CMZ FCT controllers and other different-branded controllers using CODESYS 3.5.

PROFINET RT is available on models IBD flange 60, 80 and 100.

IBD Sizes 80, 100, 142, 190mm

  • Decentralized architecture with reduced wiring
  • Programmability according to the standard IEC61131
  • Maximum power concentration in a small size

Hardware Features

  • Power supply Nominal 560Vdc (min 275Vdc max 740Vdc)
  • Control supply 275Vdc
  • Continuous torque M0 2,8-4-5,6-6-15,4-30Nm
  • Rated speed Vn=3000 rpm
  • Feedback HIPERFACE absolute encoder single or multiturn
  • 6 digital IN 24Vdc general purpose, configurable as: PSTOP, NSTOP, Enable, Home, Capture, Step/Direction
  • 3 digital OUT 24Vdc 250mA, general purpose
  • 1 digital IN/OUT 24Vdc with configurable function
  • 3 differential I/O's configurable as master incremental encoder
  • 1 Analogue IN +/-10V
  • Interface EtherCAT, CANopen, PROFINET RT (flange 80, flange 100)
  • Protection IP65
  • Option Motor brake
  • Certification CE

Functional Features

  • Stand alone programmability according to the standard IEC61131
  • Device profile DS402, Interpolated mode
  • Positioning, Extended gearing function
  • Homing, Capture
  • Capture input
  • PC parametrization tool
  • I2t, Overload, Short-circuit Protection
  • Overtemperature, Overvoltage Protection



SKU CMZ-175174
MPN 175174
EAN 85052000
