Connector (M12)

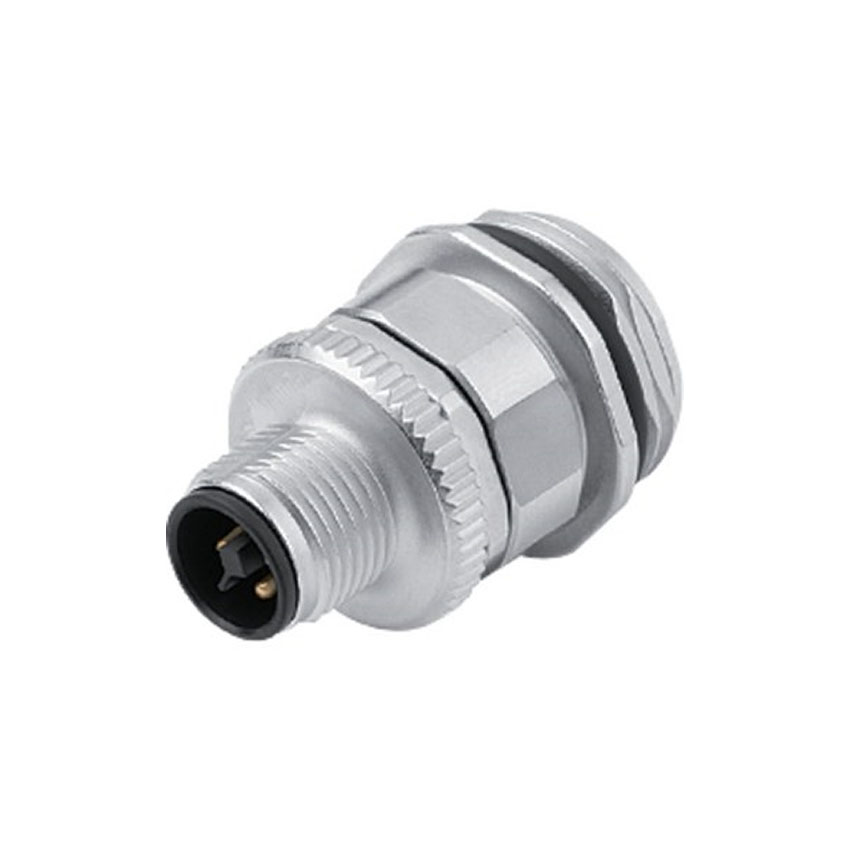

Connector (M12 T-Coded) 4 Pole Male screw connection

$44.00

(Each excl GST)
Global Stock
Login for stock
Select or Type Quantity
SKU: LAPP-22262014 Manufacturer part number: LAPP-22262014 Price breaks available:

Free shipping on Web orders over $100

M12 POWER panel mount connectors for front mounting

M12 POWER panel mount connector, front wall-mounting for power transmission to 60 V/12 A with screw connection or connected PVC single wire: 0,2m

Benefits

  • Safety use in field environment by high protection class
  • Compact and standardized M12 design saves space and costs
  • Low voltage drop
  • Fault proof connection through M12 T coding of the connector face

Application range

  • Power Supply for small devices
  • Tool shop
  • Wiring of machines, tools, devices, appliances and control cabinets
  • Suitable for use in measuring, control and regulating circuits

Product features

  • Flush type connector M16, front mounting with pre-assembled stranded wires
  • Flush-type connector M20, front mounting with screw connection
  • contact durability: > 100

Norm references / Approvals

  • UL File Number: E249137

Product Make-up

  • PVC single stranded wires, l = 0.2 m (4x AWG16)
  • 4-pin: bn (1), wh (2), bu (3), bk (4)
  • High quality gold-plated contacts
  • For screw contacts: 0,75 mm² - 1,5 mm² (AWG 18 - AWG 16)

Protection rating

  • IP 67

Ambient temperature (operation)

  • Plug/socket -40°C to +85°C

Coding

  • T - Power

Rated current (A)

  • 12A

SKU
LAPP-22262014
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
*
*
*
