CONTROL RD-Y(ST)Y 16x2x0.5 GY

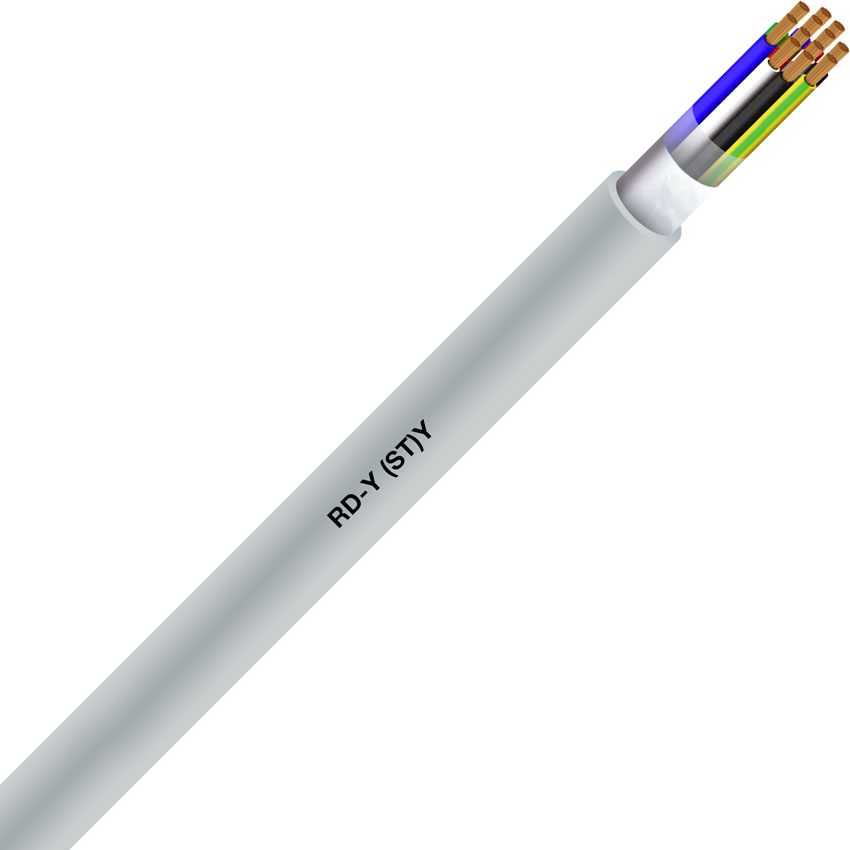

Name: CONTROL RD-Y(ST)Y 16x2x0.5 GY
SKU: LAPP-0032474
Price: 33.20 AUD
Availability: InStock

RD-Y(ST)Y, Twisted pairs, 4 pairs in a bundle, bundles in layers, bundles labelled using numbering foil, 16x2x0.5 GY

$33.20 (Per/m excl GST)

(Per/m excl GST)

Global Stock

SKU: LAPP-0032474 Manufacturer part number: 0032474 Price breaks available:

Select or Type Quantity

SKU: LAPP-0032474 Manufacturer part number: 0032474 Price breaks available:

Free shipping on Web orders over $100

Overview
Downloads
Ask A Specialist

Benefits

Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)

Application range

RD-Y(ST)Y is used as a data transmission cable for applications such as monitoring systems and control units
Measurement, control and regulation technology and also in control rooms of power plants and industrial facilities.
Suitable for transmission of analog and digital signals up to a frequency of about 10 kHz
Designed for fixed installations in enclosed rooms.

Product features

Outer sheath colour: grey or
blue for intrinsically safe systems
Variant with 2 double cores twisted as star quad
Flame retardant acc. to IEC 60332-1-2

Norm references / Approvals

Based on DIN VDE 0815

Product Make-up

7-wire bare stranded copper conductor,
core insulation made of PVC
Cores twisted into pairs,
4 pairs twisted into a bundle,
bundles in layers,
bundles labelled using numbered foil
Aluminium-laminated plastic foil static screen with tinned drain wire
Outer sheath made of PVC
Outer sheath colour: grey

Temperature range

Occasional flexing: -5°C to +50°C
Fixed installation: -40°C to +80°C

SKU

LAPP-0032474
