Fast Connect Vibration Profibus

Name: Fast Connect Vibration Profibus
SKU: LAPP-2170826
Price: 9.78 AUD
Availability: InStock

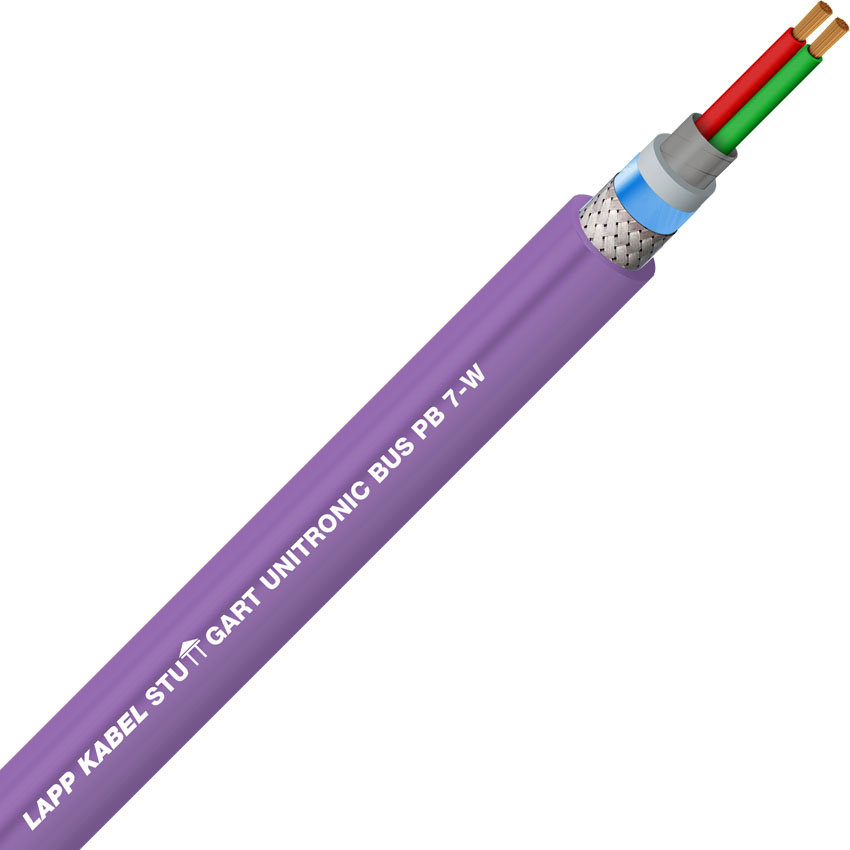

UNITRONIC® BUS PB 7-W FC, Fast Connect design, vibration resistant 1X2X0.64

$9.78 (Per/m excl GST)

(Per/m excl GST)

Global Stock

SKU: LAPP-2170826 Manufacturer part number: 2170826 Price breaks available:

Select or Type Quantity

SKU: LAPP-2170826 Manufacturer part number: 2170826 Price breaks available:

Free shipping on Web orders over $100

Overview
Downloads
Ask A Specialist

Application range

For fixed installation
Maximum electromagnetic screening
Dry or damp rooms
Item nos. 2170233, 2170333, 2170820, 2170824, 2170826 are all UV-resistant

Product features

These bus cables can be used for PROFIBUS-DP as well as for PROFIBUS-FMS and FIP
Based on the bit rates listed, in accordance with PNO specifications the following maximum cable lengths for a bus segment apply
(cable type A, PROFIBUS-DP):
93.75 kbit/s = 1200 m
187.5 kbit/s = 1000 m
500 kbit/s = 400 m
1.5 Mbit/s = 200 m
12.0 Mbit/s = 100 m

Norm references / Approvals

In accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC NET, also suitable for FIP (Factory Instrumentation Protocol)
See below for UL certification type

Product Make-up

FC: Fast Connect cable design
P: Polyurethane
H: Halogen-free
PE: polyethylene outer sheath, black
7-W: 7-wire, e.g. for applications where vibrations occur
COMBI: Data transmission and
power supply in one cable

Peak operating voltage

(not for power applications) 250 V

SKU

LAPP-2170826

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
