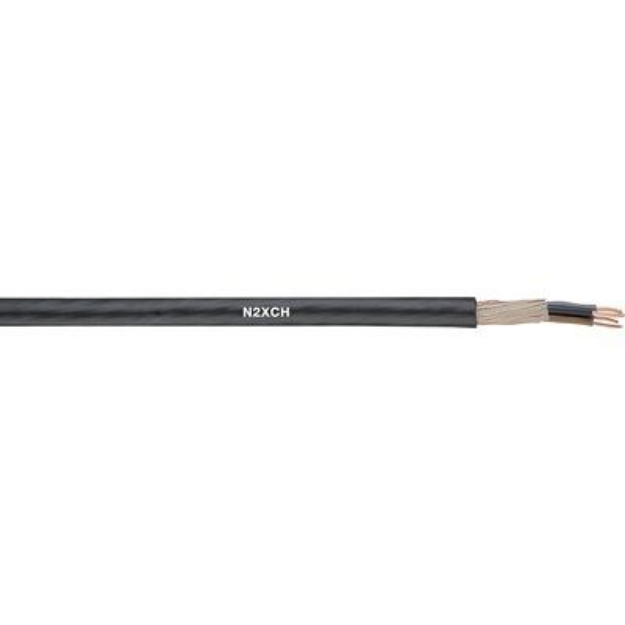

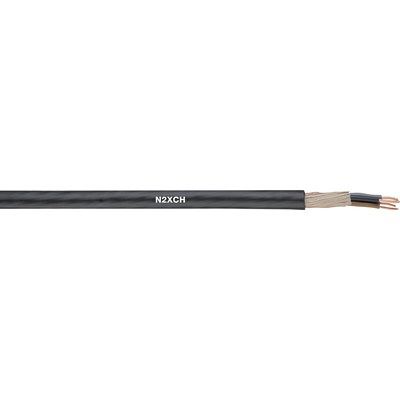

Halogen-Free Power 4x25 RM/16

Benefits

• Concentric conductor above all as PE

Application range

• For installation on or under the plaster
• Fixed installation indoor, in air or concrete
• For buildings or industrial plants with a high density of people or valuable assets
• No direct burial or installation in water
• Outdoor laying only when protected from direct sunlight and other external impacts

Product features

• Flame-retardant according IEC 60332-1-2
• No flame-propagation according to IEC 60332-3-24
• Halogen-free according to IEC 60754-1
  (amount of halogen acid gas)
  Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity)
• Low smoke density according to IEC 61034-2

Norm references / Approvals

• HD 604/VDE 0276-604

Product Make-up

• Bare copper wire conductor
• Abbreviations "re", "rm", "se", "sm":
  r = round conductor form;
  s = sectorial conductor form;
  e = single-wire conductor;
  m = multi-wire conductor;
• Core insulation: Cross-linked Polyethylen (XLPE)
• Filling compound over the core assembly
• Concentric conductor: bare copper wires
• Outer sheath: halogen-free, thermoplastic polyolefin compound
