PreviousLIYY 12X0.34 BK

NextLIYY 2X0.5 BK

LIYCY 2X0.5 BK

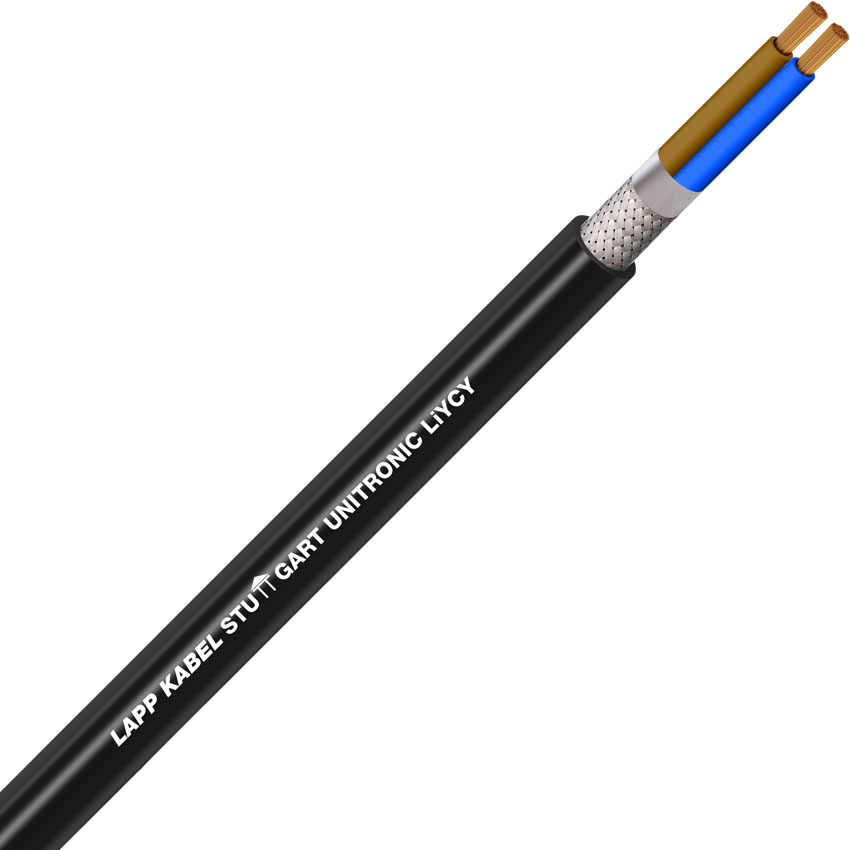

UNITRONIC® LIYCY Screened, Black UV-resistant sheath, 2X0.5 BK

Free shipping on Web orders over $100

$4.22

(Per/m excl GST)

Global Stock

Quantity Breaks

100+

500+

$4.22

SKU: LAPP-1030517 Manufacturer part number: 1030517

Qty:

Overview
Specifications
Contact Us
Downloads

UNITRONIC® LiYCY BK

Shielded data cable with colour code acc. to DIN 47100, Black/ UV resistant/ Outdoor use

UNITRONIC® Shielded PVC data cable DIN 47100 Flexible (0.34 mm² multi-wire) Flame retardant, Instrumentation Control Automation, Black UV-resistant Outdoor use

The classic for multi-functional use - in black
UV resistant/ Outdoor use

Benefits

Overall braid minimises electrical
interference
Multifunctional application possibilities
Outdoor use according to European standards

Application range

Screened cables with small dimensions are suitable for use in computer systems, insturmentation technology, office equipment, balances.
Dry or damp rooms
Outdoor use according to European standards

Product features

Flame-retardant according IEC 60332-1-2
UV resistant according to EN 50525-1
Ozone-resistant

Norm references / Approvals

Based on VDE 0812

Product Make-up

Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
Core insulation made of PVC
Tinned-copper braiding
Outer sheath made of PVC
Outer sheath colour: black

Conductor stranding

Stranded, fine-wire
0.34 mm²: 7-wire

Minimum bending radius

Occasional flexing: 15 x outer diameter
Fixed installation: 6 x outer diameter

Temperature range

Occasional flexing: -5°C to +70°C
Fixed installation: -40°C to +80°C

SKU

LAPP-1030517

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Colour	Black
Conductor Size	0.5mm
Number of Conductors	2
Special Features	Screened
