PreviousLIYCY 2X0.14 BK
Next100 CY 4x0.14

LiYCY 3x0.14

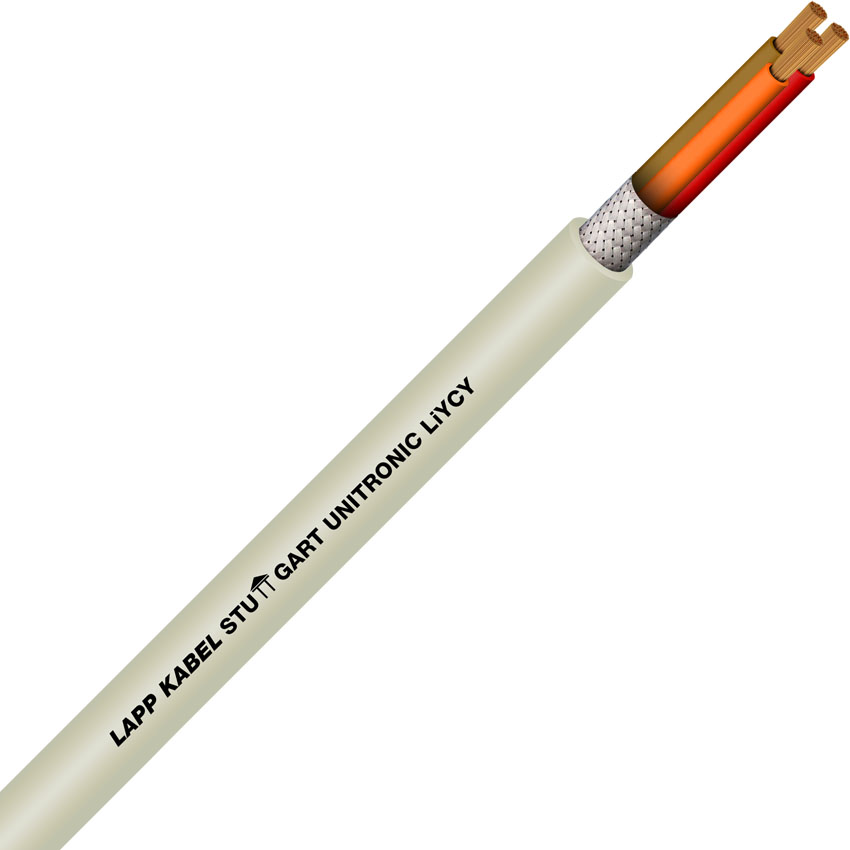

UNITRONIC® LiYCY, Screened Data Cable with small dimensions, 3x0.14

$3.10

(Per/m excl GST)
In Stock
Login for stock
Select or Type Quantity
SKU: LAPP-0034303 Manufacturer part number: 0034303 Price breaks available:

Free shipping on Web orders over $100

Benefits

  • Overall braid minimises electrical
    interference
  • Multifunctional application possibilities

Application range

  • Screened cables with small dimensions are suitable for use in computer systems, insturmentation technology, office equipment, balances.
  • Dry or damp rooms

Product features

  • Flame-retardant according IEC 60332-1-2

Norm references / Approvals

  • Based on VDE 0812

Product Make-up

  • Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
  • Core insulation made of PVC
  • Tinned-copper braiding
  • Outer sheath made of PVC
    Outer sheath colour: pebble grey (RAL 7032)

Temperature range

  • Occasional flexing: -5°C to +70°C
  • Fixed installation: -40°C to +80°C

SKU
LAPP-0034303
