LIYCY 4X0.34 BK

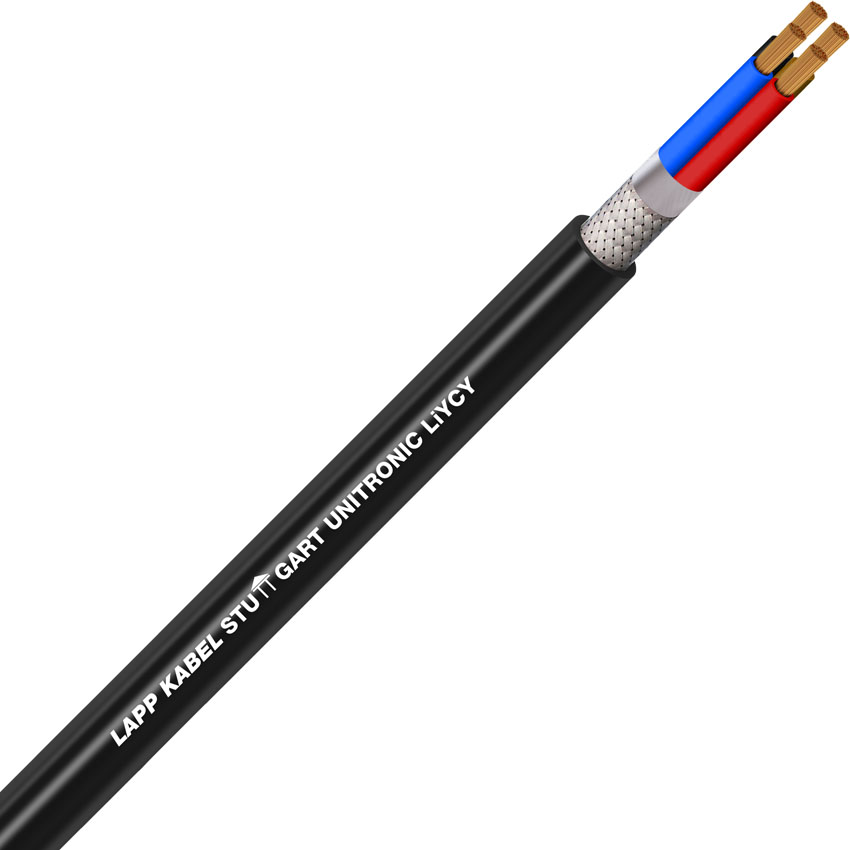

UNITRONIC® LIYCY Screened, Black UV-resistant sheath, 4X0.34 BK

Free shipping on Web orders over $100

$4.72
(Per/m excl GST)
Global Stock
Quantity Breaks
1+
100+
500+
$4.72
$4.72
$4.72
SKU: LAPP-1030497 Manufacturer part number: 1030497

UNITRONIC® LiYCY BK

Shielded data cable with colour code acc. to DIN 47100, Black/ UV resistant/ Outdoor use

UNITRONIC® Shielded PVC data cable DIN 47100 Flexible (0.34 mm² multi-wire) Flame retardant, Instrumentation Control Automation, Black UV-resistant Outdoor use

  • The classic for multi-functional use - in black
  • UV resistant/ Outdoor use

Benefits

  • Overall braid minimises electrical
    interference
  • Multifunctional application possibilities
  • Outdoor use according to European standards

Application range

  • Screened cables with small dimensions are suitable for use in computer systems, insturmentation technology, office equipment, balances.
  • Dry or damp rooms
  • Outdoor use according to European standards

Product features

  • Flame-retardant according IEC 60332-1-2
  • UV resistant according to EN 50525-1
  • Ozone-resistant

Norm references / Approvals

  • Based on VDE 0812

Product Make-up

  • Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
  • Core insulation made of PVC
  • Tinned-copper braiding
  • Outer sheath made of PVC
    Outer sheath colour: black

Conductor stranding

  • Stranded, fine-wire
    0.34 mm²: 7-wire

Minimum bending radius

  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 6 x outer diameter

Temperature range

  • Occasional flexing: -5°C to +70°C
  • Fixed installation: -40°C to +80°C

SKU
LAPP-1030497
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Colour Black
Conductor Size 0.34mm
Number of Conductors 4
Special Features Screened
*
*
*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

UNITRONIC® LiYCY BK

Shielded data cable with colour code acc. to DIN 47100, Black/ UV resistant/ Outdoor use

UNITRONIC® Shielded PVC data cable DIN 47100 Flexible (0.34 mm² multi-wire) Flame retardant, Instrumentation Control Automation, Black UV-resistant Outdoor use

  • The classic for multi-functional use - in black
  • UV resistant/ Outdoor use

Benefits

  • Overall braid minimises electrical
    interference
  • Multifunctional application possibilities
  • Outdoor use according to European standards

Application range

  • Screened cables with small dimensions are suitable for use in computer systems, insturmentation technology, office equipment, balances.
  • Dry or damp rooms
  • Outdoor use according to European standards

Product features

  • Flame-retardant according IEC 60332-1-2
  • UV resistant according to EN 50525-1
  • Ozone-resistant

Norm references / Approvals

  • Based on VDE 0812

Product Make-up

  • Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
  • Core insulation made of PVC
  • Tinned-copper braiding
  • Outer sheath made of PVC
    Outer sheath colour: black

Conductor stranding

  • Stranded, fine-wire
    0.34 mm²: 7-wire

Minimum bending radius

  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 6 x outer diameter

Temperature range

  • Occasional flexing: -5°C to +70°C
  • Fixed installation: -40°C to +80°C

SKU
LAPP-1030497
Products specifications
Attribute name Attribute value
Colour Black
Conductor Size 0.34mm
Number of Conductors 4
Special Features Screened
