LiYCY CY 4x0.25

UNITRONIC® LiYCY CY, Screened Data Cable with individually screened cores, 4x0.25

$16.60

(Per/m excl GST)
Global Stock
Login for stock
Select or Type Quantity
SKU: LAPP-0032304 Manufacturer part number: 0032304 Price breaks available:

Free shipping on Web orders over $100

Benefits

  • Overall braid minimises electrical
    interference
  • Individually screened cores minimise
    crosstalk between cables routed in parallel

Application range

  • When a lossless transmission of data has to be guaranteed in fields with strong interference, cables with individually-screened cores and an additional overall screening are used
  • Dry or damp rooms

Product features

  • Wire-screen can be used as outer conductor
  • The cable remains flexible despite multiple screening
  • Flame-retardant according IEC 60332-1-2

Norm references / Approvals

  • Based on VDE 0812

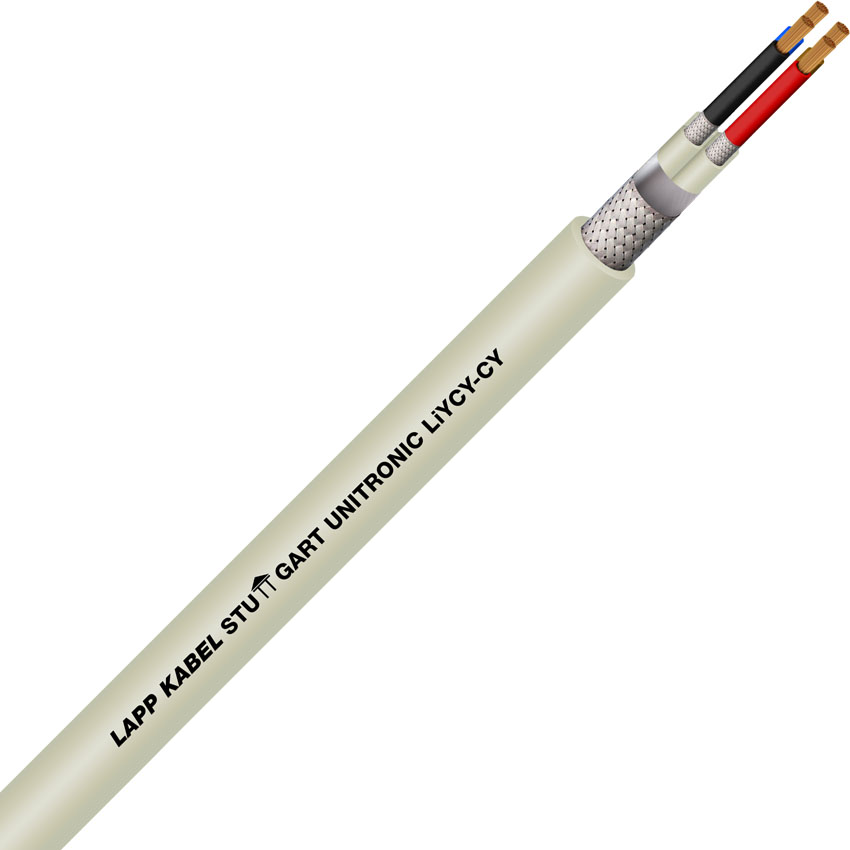

Product Make-up

  • Fine-wire strand made of bare copper wires
  • Core insulation made of PVC
  • Tinned-copper braiding for each core
  • Inner sheath made of PVC over each screened core
  • Tinned-copper braiding
  • Outer sheath made of PVC
    Outer sheath colour: pebble grey (RAL 7032)

Temperature range

  • Occasional flexing: -5°C to +70°C
  • Fixed installation: -40°C to +80°C

SKU
LAPP-0032304
