LiYCY CY 5x0.25

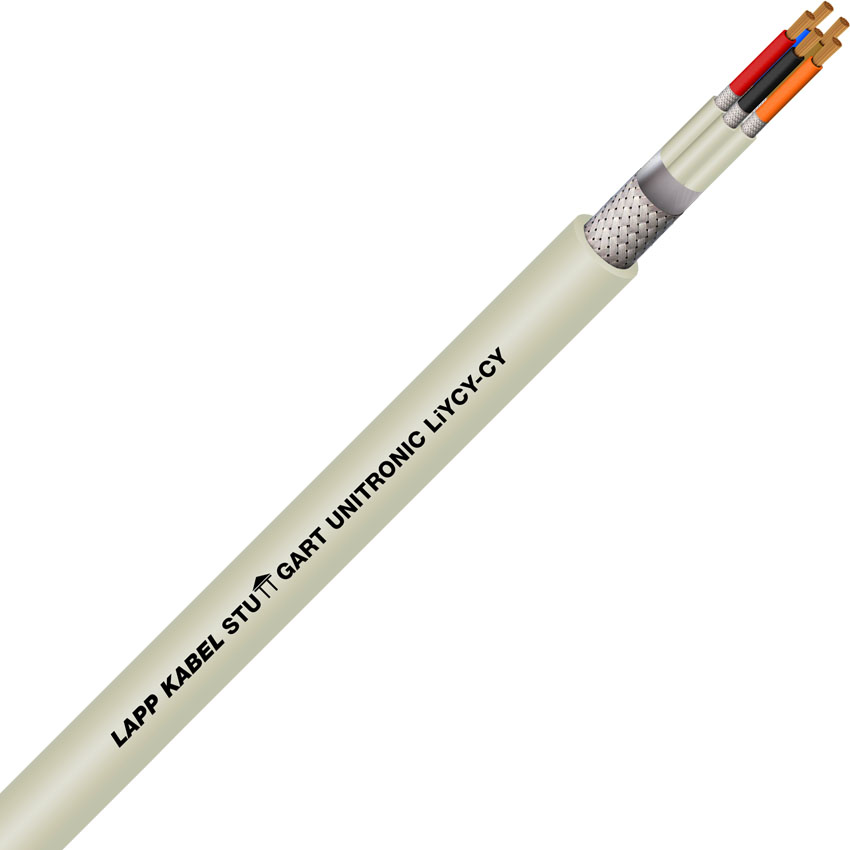

UNITRONIC® LiYCY CY, Screened Data Cable with individually screened cores, 5x0.25

Free shipping on Web orders over $100

$19.06

(Per/m excl GST)

Global Stock

Quantity Breaks

25+

100+

$19.06

SKU: LAPP-0032305 Manufacturer part number: 0032305

Qty:

Overview
Contact Us
Downloads

Benefits

Overall braid minimises electrical
interference
Individually screened cores minimise
crosstalk between cables routed in parallel

Application range

When a lossless transmission of data has to be guaranteed in fields with strong interference, cables with individually-screened cores and an additional overall screening are used
Dry or damp rooms

Product features

Wire-screen can be used as outer conductor
The cable remains flexible despite multiple screening
Flame-retardant according IEC 60332-1-2

Norm references / Approvals

Based on VDE 0812

Product Make-up

Fine-wire strand made of bare copper wires
Core insulation made of PVC
Tinned-copper braiding for each core
Inner sheath made of PVC over each screened core
Tinned-copper braiding
Outer sheath made of PVC
Outer sheath colour: pebble grey (RAL 7032)

Temperature range

Occasional flexing: -5°C to +70°C
Fixed installation: -40°C to +80°C

SKU

LAPP-0032305
