METALFOIL Li2YCY PiMF 3x2x1

Benefits

• Data transmission cable with low capacitance, pair screening and overall copper braiding
• Particularly suitable for wiring data systems and controls in large industrial plants
• Individually screened pairs and the overall braid minimise electrical interference
• Decoupling of circuits by means of
  twisted-pair (TP) design (crosstalk effects)

Application range

• For enhanced requirements in near-end cross-talk attenuation and high electrical interference in the circuits
• Suitable for the transmission with varying in frequency and voltage or sensitive signals
• Can be used multifunctional in electronics of computer systems, electronic control equipment, office machines, balances, etc.
• For measurement value transmission and serial 2-wire interfaces
• Intended for limited flexible use, and for fixed installation in dry or damp interiors

Product features

• Flame-retardant according IEC 60332-1-2

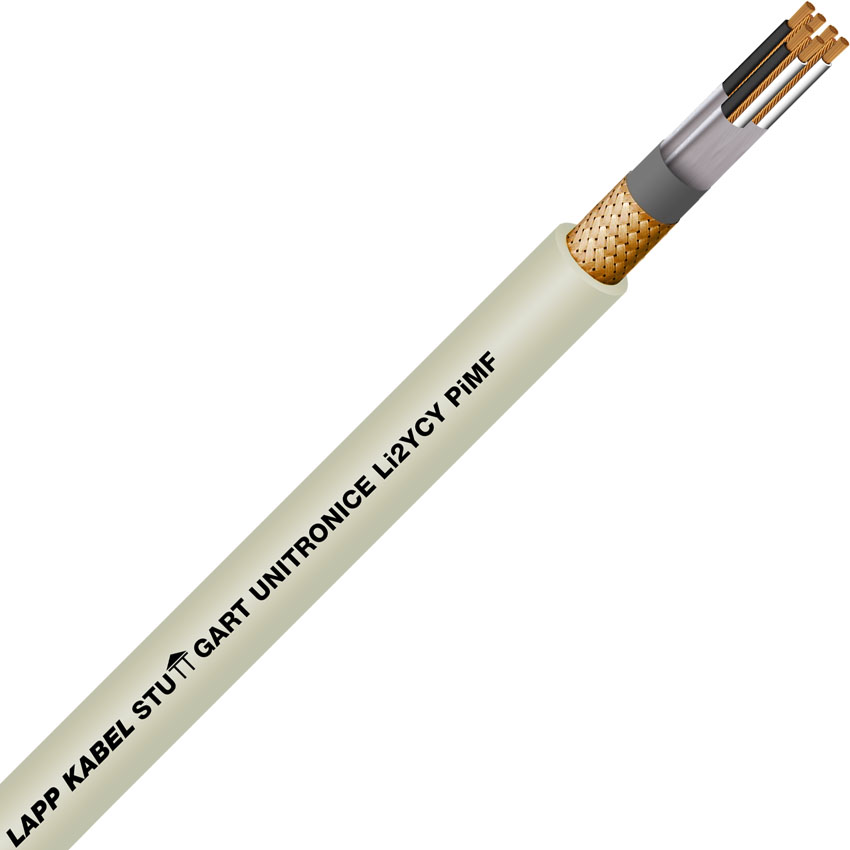

Product Make-up

• 7-wire or fine-wire (from 1 mm²) strands made of bare copper wires
• Core insulation made of polyethylene (PE)
• Cores twisted into pairs
• Foil wrapping, static screening made of aluminium-laminated plastic film with copper drain wire for each pair
• Bare copper screen braiding
• Outer sheath made of PVC
  Outer sheath colour: pebble grey (RAL 7032)

Temperature range

• Occasional flexing: -5°C to +70°C
• Fixed installation: -40°C to +80°C
