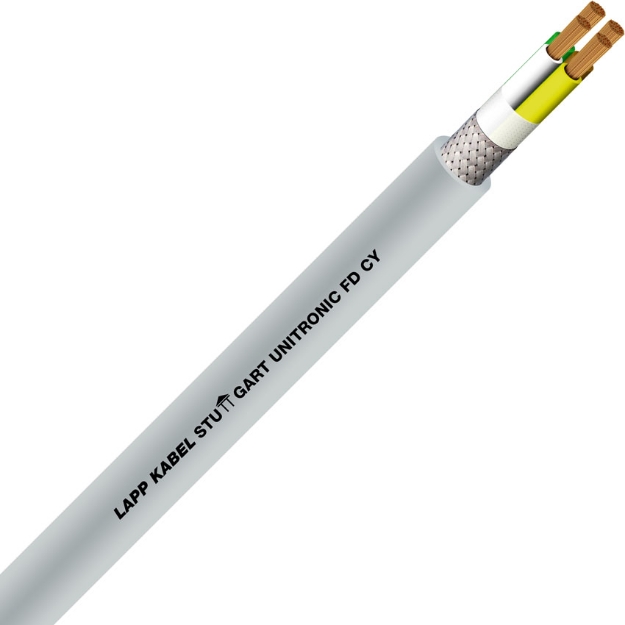

SCREENED DATA DRAGCHAIN 4x0.14

UNITRONIC® FD CY, Screened, highly flexible for dragchain use, 4x0.14

Free shipping on Web orders over $100

$4.79 (Per/m excl GST)

Global Stock

Quantity Breaks

100+

500+

$4.79

SKU: LAPP-0027412 Manufacturer part number: 0027412

Qty:

Overview
Contact Us
Downloads

Benefits

Well-proven and reliable
Optimized cable construction for power chain use
Cost-effective solution
Overall braid minimises electrical
interference

Application range

Automated production processes require data transmission cables that offer high flexibility and durability, as well as excellent screening
Suitable for use in measuring, control and regulating circuits
Assembly lines, production lines, in all kinds of machines

Product features

Low-adhesive surface
Flame-retardant according IEC 60332-1-2
Designed for 2 up to 8 million bending/unbending cycles in power chain applications

Norm references / Approvals

Based on VDE 0812
For travel distances up to 10 m.
For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

Extra-fine wire strand made of bare copper wires
Core insulation made of PVC
Non-woven wrapping
Tinned-copper braiding
Outer sheath made of PVC
Outer sheath colour: grey (RAL 7001)

Temperature range

Flexing: -5°C to +70°C
Fixed installation: -40°C to +80°C

SKU

LAPP-0027412
