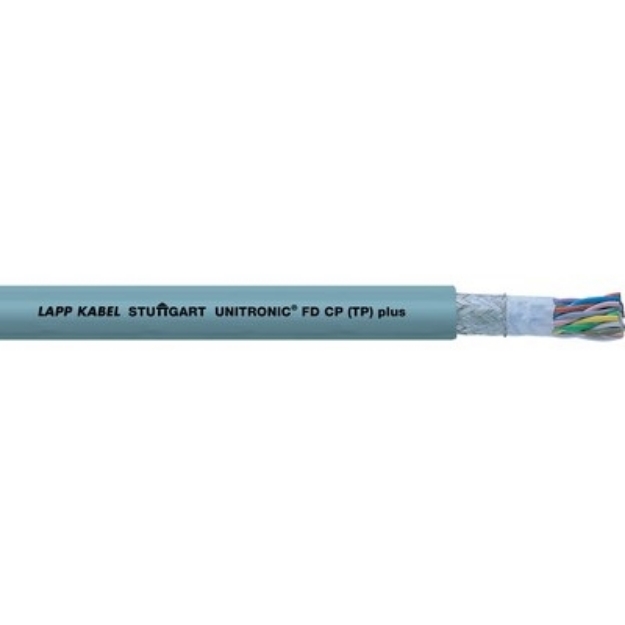

Screened PUR Drag chain TP plus A 4X2X0.5

UNITRONIC® FD CP (TP) plus A, Twisted pairs, Screened, Drag chain, PUR sheath, 4X2X0.5

$24.50

(Per/m excl GST)
In Stock
Login for stock
Select or Type Quantity
SKU: LAPP-11139523 Manufacturer part number: 11139523 Price breaks available:

Free shipping on Web orders over $100

Benefits

  • Wide temperature range for applications in harsh climatic environments
  • Decoupling of circuits by means of
    twisted-pair (TP) design (crosstalk effects)
  • UL AWM voltage rating 1000V in case of internal wiring allows for internal laying next to power cables with applied UL rating of 1kV
  • In the USA inside of industrial machines, per NFPA 79, Section 12.9.2 (condition 3 under 12.9.2: Thru 1 mm² and <16 AWG)

Application range

  • Suitable for use in measuring, control and regulating circuits
  • Linear robots, automated handling equipment
  • Drag chain use - in case of horizontal installation travel distances up to 100 m
  • For use in chain/carrier: Please respect the assembly guidelines listed in Appendix T3
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Product features

  • Halogen-free, has low capacitance and is flexible down to -40°C
  • PUR outer sheath, tear and notch-resistant, resistant to mineral oils and abrasion when used in power chains
  • Low-adhesive surface, resistant to hydrolysis and microbes, oil resistant
  • Flame retardance: IEC 60332-1-2, VW-1, FT2
  • Designed for 10 million alternating bending cycles and horizontal travel distances up to 100 meter

Norm references / Approvals

  • cULus CMX certified by UL (UL: E236660)
  • cRUus AWM certified by UL (UL: E63634): UL AWM Style 21576 and AWM A/B I/II

Product Make-up

  • Extra-fine wire strand made of bare copper wires
  • Core insulation: Based on Polyolefin
    TP structure
  • Non-woven wrapping
  • Tinned-copper braiding
  • Outer sheath made of special PUR compound
    Outer sheath colour: grey (RAL 7001)

Temperature range

  • Flexing: -40°C to +80°C
  • Fixed installation: -40°C to +80°C
    cULus CMX: max. +75°C
    cRUus AWM: max. +80°C

SKU
LAPP-11139523
