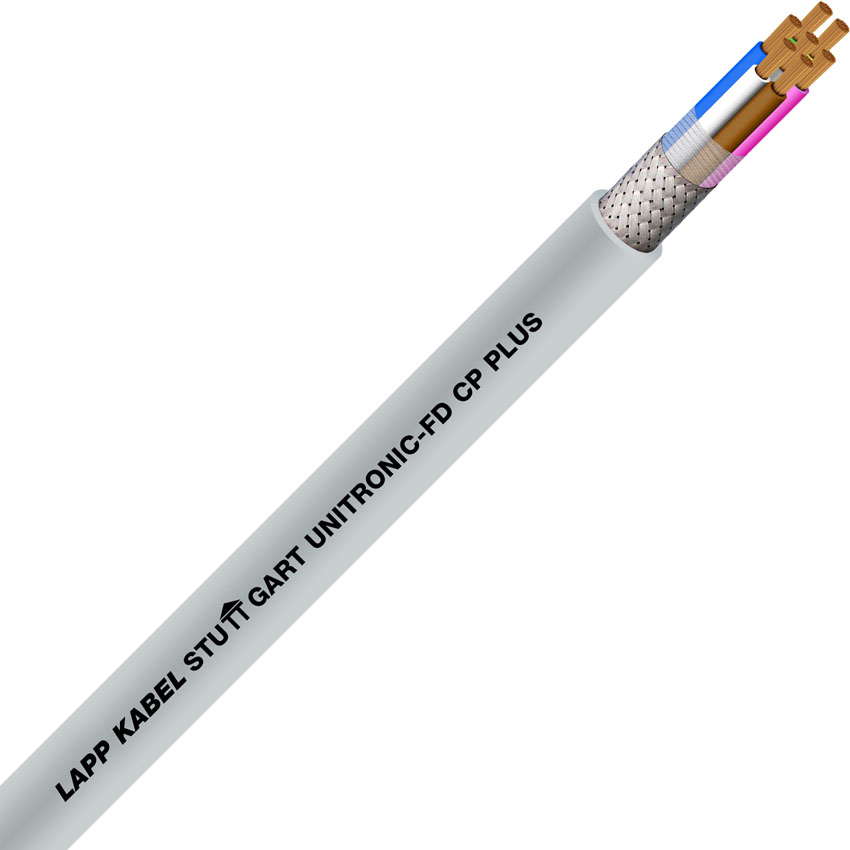

SCREENED PUR DRAG CHAIN DATA 7X0.25

Name: SCREENED PUR DRAG CHAIN DATA 7X0.25
SKU: LAPP-0028893
Price: 10.20 AUD
Availability: InStock

UNITRONIC® FD CP plus (limited stock remains, replaced by LAPP-11139612)

$10.20 (Per/m excl GST)

(Per/m excl GST)

In Stock

SKU: LAPP-0028893 Manufacturer part number: 0028893 Price breaks available:

Select or Type Quantity

SKU: LAPP-0028893 Manufacturer part number: 0028893 Price breaks available:

Free shipping on Web orders over $100

Overview
Specifications
Downloads
Ask A Specialist

Benefits

Wide temperature range for applications in harsh climatic environments
Overall braid minimises electrical
interference
UL AWM voltage rating 1000V in case of internal wiring allows for internal laying next to power cables with applied UL rating of 1kV
In the USA inside of industrial machines, per NFPA 79, Section 12.9.2 (condition 3 under 12.9.2: Thru 1 mm² and <16 AWG)

Application range

Suitable for use in measuring, control and regulating circuits
Drag chain use - in case of horizontal installation travel distances up to 100 m
For use in chain/carrier: Please respect the assembly guidelines listed in Appendix T3
Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Product features

Halogen-free, has low capacitance and is flexible down to -40°C
PUR outer sheath, tear and notch-resistant, resistant to mineral oils and abrasion when used in power chains
Low-adhesive surface, resistant to hydrolysis and microbes, oil resistant
Flame retardance: IEC 60332-1-2, VW-1, FT2
Designed for 5 up to 10 million bending/unbending cycles (constant flex) in drag chains

Norm references / Approvals

cULus CMX certified by UL (UL: E236660)
cRUus AWM certified by UL (UL: E63634): UL AWM Style 21576 and AWM A/B I/II

Product Make-up

Extra-fine wire strand made of bare copper wires
Core insulation: Based on Polyolefin
Non-woven wrapping
Tinned-copper braiding
Outer sheath made of special PUR compound
Outer sheath colour: grey (RAL 7001)

Temperature range

Flexing: -40°C to +80°C
Fixed installation: -40°C to +80°C
cULus CMX: max. +75°C
cRUus AWM: max. +80°C

SKU

LAPP-0028893, LAPP-11139612

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Locally Stocked in Australia	Only Show Stocked Items

Product Files

Type Name

Datasheet

LAPP-Main-Catalogue-2018-19 _ 311
