Connector (M12)

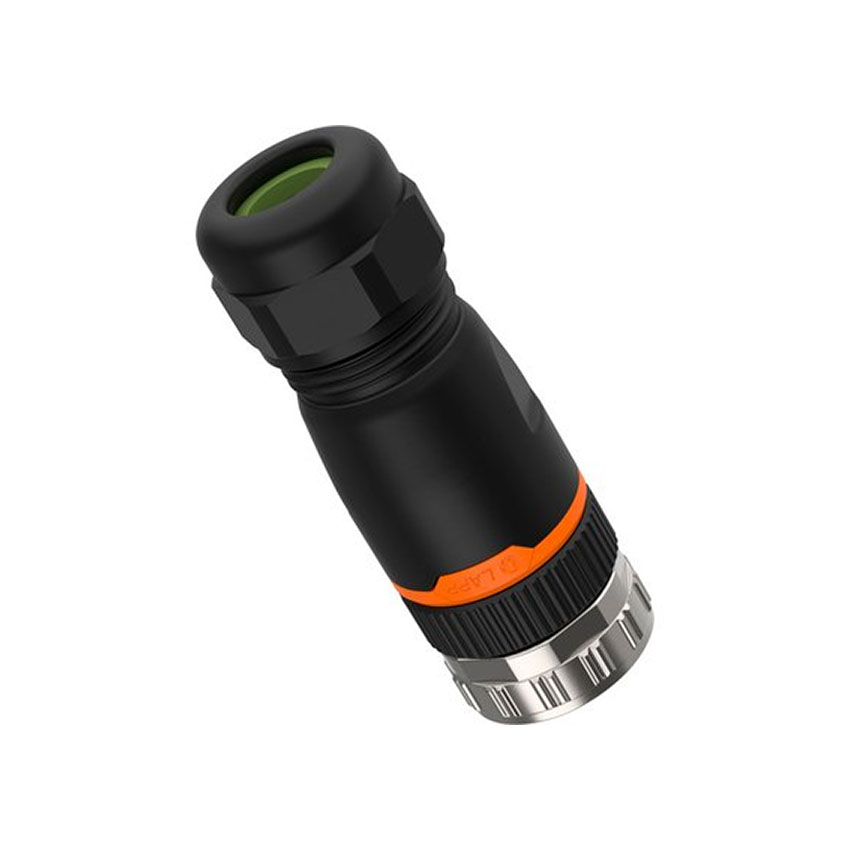

EPIC® POWER M12S Screw termination

Circular connectors for servomotors and power supply

This compact M12 connector with PE contact comes into play if you want more power. It is used to supply power to three-phase motors (630V, 12A per contact). The S-coding prevents incorrect plugging with other connectors.

Benefits

• High stability thanks to impact-resistant polyamide.
• Powerful up to 12A despite extremely space-saving size for the tightest of spaces.
• The mechanical S-coding of the connector face prevents incorrect plugging with mating connectors.
• The service-friendly screw connection makes assembly possible without a special tool, and is suitable for connections which need to be detached again.
• Available in different designs and with different pole configurations.

Application range

• For connecting three-phase motors with up to 7.5kW.
• For power supply connection of devices and machines in various applications.
• Good oil and chemical resistance.

Technical Data

• Rated voltage (V) 630V
• Rated impulse voltage 6kV
• Rated current (A) 12A
• Pollution degree 3
• Number of contacts 3 + PE
• S-coded
• Termination methods, screw termination: 0.5-2.5mm²
• Protection rating IP67
• Cycle of mechanical operation 100
• Temperature range -25°C - +85°C

SKU LAPP-381166307
MPN 381166307
EAN 4064728618172
