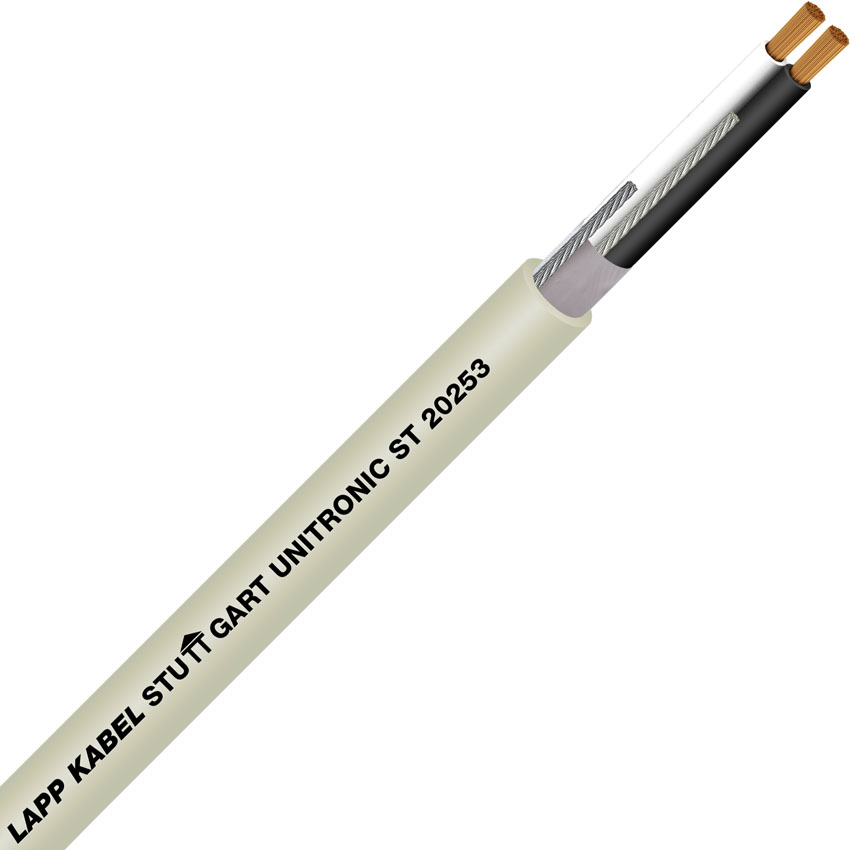

UL Foil Screen Data ST 1x2x16AWG

Application range

• Internal wiring for audio, transmission measurement and control signals with minimum noise
• Cost effective and ideal for environment which is less susceptible to noise
• For static laying in dry and damp environments

Benefits

• 100% shielding, offers optimum protection against external interference at medium and high frequencies
• Ideal solution where flexibility and a high degree of screening is required
• Flame retardant in acc. to IEC 60332-1-2

Product Make-up

• Multi-wire strands of tinned copper wires
• Core insulation made of polyethylene (PE)
• Cores twisted together
• Static screen of aluminium laminated plastic foil
• Tinned copper drain wire
• PVC outer sheath
• Colour: pebble gray, RAL 7032
