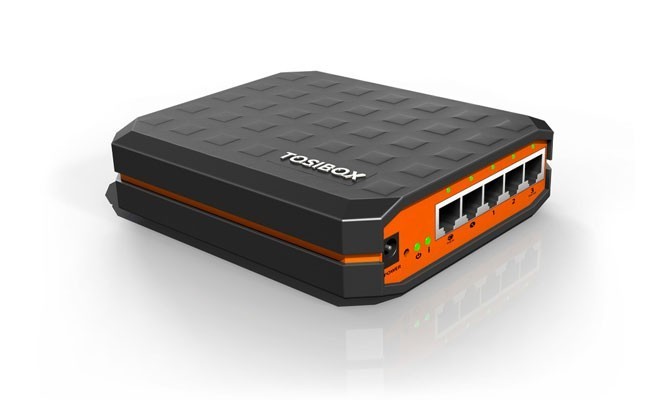

TOSIBOX Lock 200

TOSIBOX Lock 200 (with Australia/New Zealand Power Supply)
Manufacturer: TOSIBOX
SKU: TOSI-TBL2AU
Manufacturer part number: TOSI-TBL2AU
Availability: Log in to check exact stocks
$ 950.00
Free Shipping

For more information regarding this product please call us on 1800 931 559

TOSIBOX® Lock 200 is an intelligent remote access and networking device that serves as an endpoint for secure remote connections. Devices connected to the Lock are securely accessed over the Internet and most LAN and WAN networks through an encrypted VPN connection.

NAT and firewall friendly, the Lock’s patented Plug & GOTM connection method takes you out of the box and into use in less than 5 minutes, without the need for software installations, network configurations or special skills.



Ports

  • 1 x USB 2.0, type A
  • 1 x RJ-45 WAN connection, 10/100 Mb/s, auto-negotiation (MDI / MDI-X)
  • 3 x RJ-45 LAN connection, 10/100 Mb/s, auto-negotiation (MDI / MDI-X)
  • 1 x RJ-45 Service connection, 10/100 Mb/s, auto-negotiation (MDI / MDI-X)

Connections

  • DC input power jack 5.5/2.1mm, 8 – 27 V DC ± 10%, reverse polarity protected
  • PoE input 8 – 27 V DC (WAN port), PoE output (LAN3 port, limited, 27 V / 580 mA max)
  • The product must be powered by limited energy according to chapter 9.4 of IEC / UL 61010-1 3rd edition
  • DIN rail mounting bracket M3 threads on three sides
  • Maximum power consumption is 7W

WAN Connection Features

  • Independent of operating systems
  • Works in all Internet connections (operator independent)
  • Supports HTTP proxy servers with and without authentication
  • Firewall friendly
  • Works with dynamic, static and private IP addresses
  • Built-in firewall, NAT
  • Up to 50 concurrent VPN connections
  • VPN throughput up to 15 Mb/s

Mobile Connection Features

  • Supported 3G/4G USB modems: TOSIBOX® 3G modem, TOSIBOX® 4G modem
  • TosiOnline™ Automatic network recovery that recovers from most mobile operator and modem problems

Included Accessories

  • USB extension cable
  • RJ45/RJ45 Ethernet cable
  • AC adapter: Input 100 – 240 V AC, frequency 47 – 63 Hz, Output 12.0 V, 1.6 A, max 19.2 W. EU, UK, or US power socket
  • DIN rail mounting bracket
  • Power cable anchor
  • DC input plug

Physical Properties

  • 140 mm x 36 mm x 125 mm / 5.51″ x 1.42″ x 4.92″ (L x W x H)
  • Weight 530 g / 1.17 lbs
  • Operating temperature -20 °C … +50 °C / -4 °F … +122 °F
  • Storage temperature -40 °C … +70 °C / -40 °F … +158 °F
  • Operating humidity: 20 – 80% RH, non condensing
  • Maximum operating altitude: 3000 m / 10 000 ft.
  • Overvoltage category I
  • Cast aluminium casing
  • IP protection class: IP20
