Connector (M12)

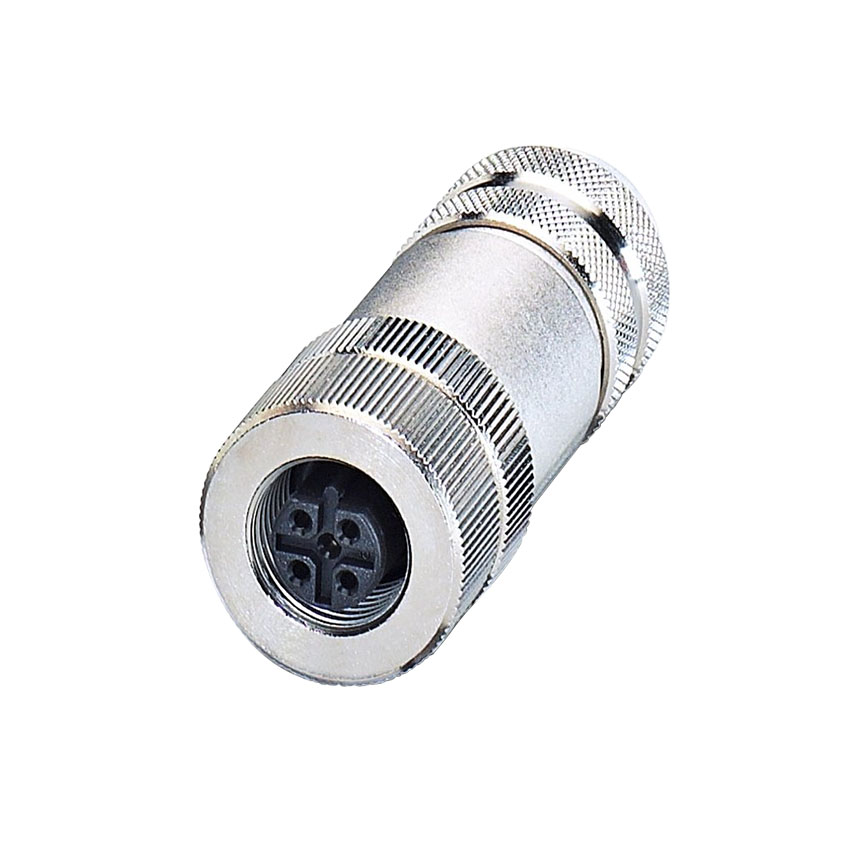

Connector (M12 B-Coded) 5 Pole Female screw termination (ProfiBus)

Free shipping on Web orders over $100

$65.00

(Each excl GST)

In Stock

Quantity Breaks

25+

100+

$65.00

SKU: LAPP-22260646 Manufacturer part number: 22260646 Manufacturer: UNITRONIC®

Qty:

Overview
Specifications
Contact Us
Downloads

Bus system plug connector, female, straight, 5-pos., M12, shielded, gold-plated contacts,
B-coded, screw connection, metal knurl, cable screw connection Pg9

Technical data

Lapp article number: 22260646
Nominal current IN: 4 A
Nominal voltage UN: 60 V
Number of poles: 5
Coding: B - inverse
Contact resistance: 3 mO
Ambient temp. min. (operation)-
plug/socket: -40 °C
Ambient temp. max. (operation)-
plug/socket: 85 °C
Surge voltage category: II
Pollution degree: 3
Degree of protection: IP67
Status display: No
Connection type: Screw connection
Diameter min: 6 mm
Diameter max: 8.5 mm
Contact carrier material: PA 66
Contact surface material: Au
Material of grip body: Zinc die-cast, (nickel-plated)
Material, knurls: Nickel-plated brass
Sealing material: NBR
Pg screw connection: PG 9
Inflammability class acc. to UL 94: V0

SKU

LAPP-22260646

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Locally Stocked in NZ	Only Show Stocked Items
Locally Stocked in Australia	Only Show Stocked Items
Number of Conductors	5
Gender	Female

Your name *

Your email *

Enquiry *

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Product Files

Type Name

Datasheet

LAPP-Main-Catalogue-2018-19 _ 357

Bus system plug connector, female, straight, 5-pos., M12, shielded, gold-plated contacts,
B-coded, screw connection, metal knurl, cable screw connection Pg9
