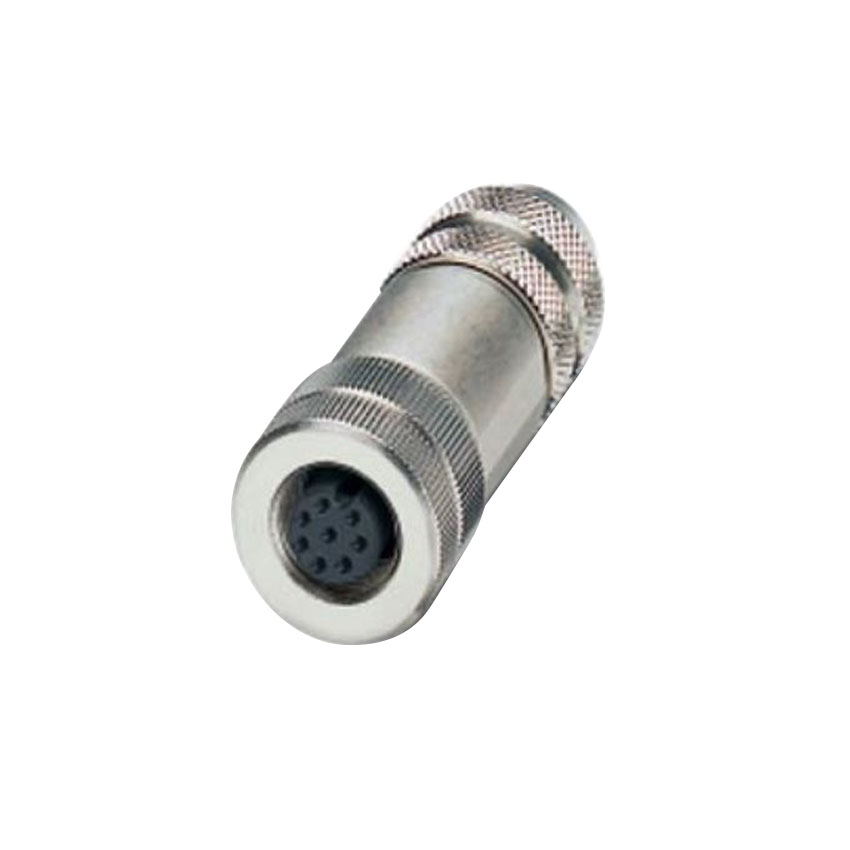

Connector (M12)

Sensor/actuator connector, female, straight, 8-pos., M12, shielded, Acoded,
screw connection, metal knurl, cable screw connection Pg9

Technical Data

Number of poles: 8
Coding: A - Standard
Connection type: Screw connection
Degree of protection: IP67
Pollution degree: 3
Status display: No
Inflammability class acc. to UL 94: V0
Surge voltage category: II
Material of grip body: Zinc die-cast, (nickel-plated)
Material, knurls: Nickel-plated brass
Sealing material: NBR
Contact material: CuZn
Contact carrier material: PA 66
Nominal voltage UN: 30 V
Nominal current IN: 2 A
Contact resistance: 3 mO
Insulation resistance: 100 MOhm
Diameter (min) in mm: 6 mm
Diameter (max) in mm: 8 mm
Conductor cross section AWG/kcmil min.: 24
Conductor cross section AWG/kcmil max.: 18
Conductor cross section stranded min: 0.25 mm²
Conductor cross section stranded max: 0.75 mm²

Connection type: Screw connection

Coding: A - Standard
Material, knurls: Nickel-plated brass
Material of grip body: Zinc die-cast, (nickel-plated)
Sealing material: NBR
Contact surface material: Au
Contact carrier material: PA 66
Contact resistance: 3 mO

Ambient temperature (operation):

min. -40 °C
max. 85 °C
