Black Flex Numbered 600/1000V 5G6

Name: Black Flex Numbered 600/1000V 5G6
SKU: LAPP-1120367
Price: 39.00 AUD
Availability: InStock

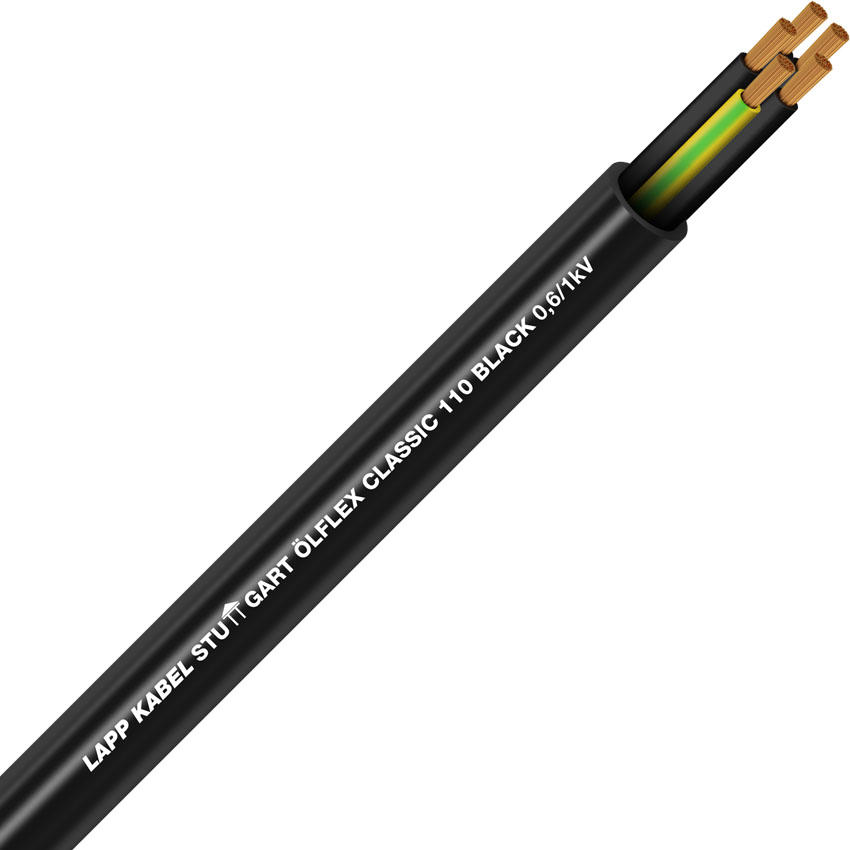

ÖLFLEX® CLASSIC 110 BLACK, PVC sheath, numbered cores, good for outdoor use, 0.6/1kV 5G6 (4 + E)

$39.00 (Per/m excl GST)

(Per/m excl GST)

Global Stock

SKU: LAPP-1120367 Manufacturer part number: 1120367 Price breaks available:

Select or Type Quantity

SKU: LAPP-1120367 Manufacturer part number: 1120367 Price breaks available:

Free shipping on Web orders over $100

Overview
Specifications
Downloads
Ask A Specialist

Application range

Plant engineering
Industrial machinery
Heating and air-conditioning systems
Power stations
Stage applications
For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
Each dimension with nominal/ minimum average wall thickness of the outer sheath of at least 1.8 mm: For applications where a strengthened outer sheath may turn out to be advantageous
Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Product features

Flame-retardant according IEC 60332-1-2
UV and weather-resistant according to ISO 4892-2
Ozone-resistant according to EN 50396

Norm references / Approvals

Based on VDE 0250-1 and HD 627-1 S1

Product Make-up

Fine-wire strand made of bare copper wires
PVC insulation LAPP P8/1
PVC outer sheath, black (RAL 9005)

SKU

LAPP-1120367

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Number of Conductors	5
Conductor Size	6mm
Colour	Black

Product Files

Type Name

Datasheet

LAPP-Main-Catalogue-2018-19 _ 43
