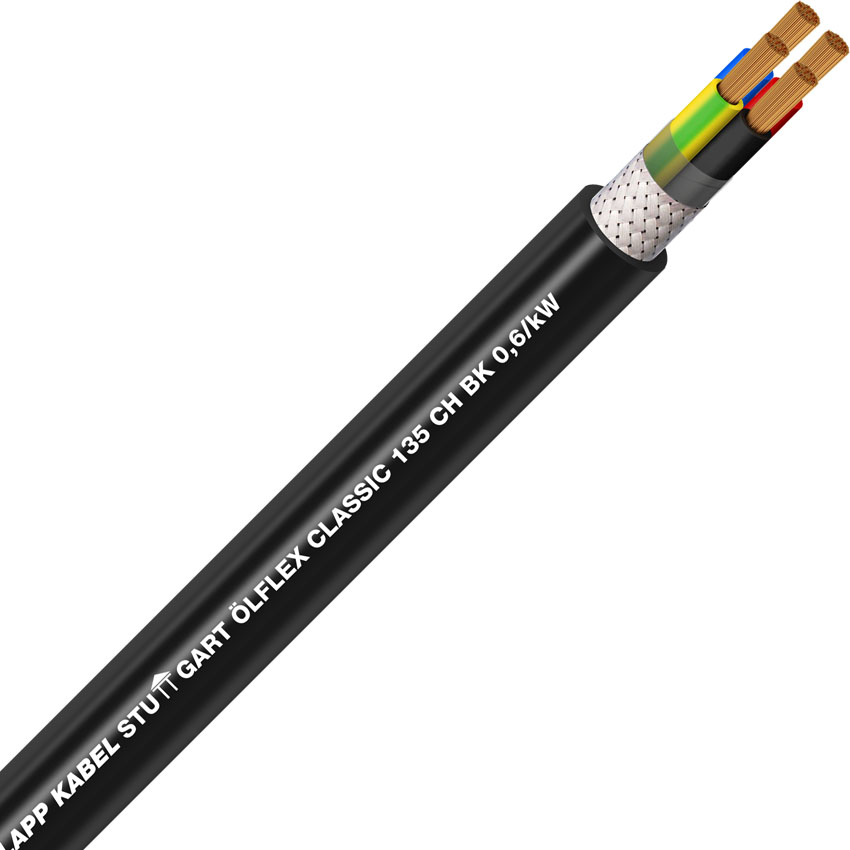

Black Halogen-Free Screened 0.6/1 Kv 4G6

Benefits

• Easy installation due to flexible design
• Space-saving installation due to small cable diameters

Application range

• Plant engineering
  Industrial machinery
  Heating and air-conditioning systems
• Particularly where human and animal life as well as valuable property are exposed to high risk of fire hazards
• For outdoor applications
• According to NFPA 79, 2015 Edition, subchapter 12.9.2: Use for industrial machinery operated in the USA on the basis of UL AWM (recognized) certification
• Each dimension with nominal/ minimum average wall thickness of the outer sheath of at least 1.8 mm: For applications where a strengthened outer sheath may turn out to be advantageous

Product features

• Flame-retardant according to IEC 60332-1-2
  (flame spread on a single cable)
• No flame-propagation according to IEC 60332-3-24 respectively IEC 60332-3-25 (Flame spread on vertical cable or wire bundle)
• Halogen-free according to IEC 60754-1
  (amount of halogen acid gas)
  Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity)
• Low smoke density according to IEC 61034-2
• UV and weather-resistant according to ISO 4892-2
• Ozone-resistant according to EN 50396
• UL Cable Flame Test

Norm references / Approvals

• Based on EN 50525-3-11
• UL AWM (recognized) Style 21156 (outer jacket) with max. conductor temperature of +75 °C acc. to UL

Product Make-up

• Fine-wire strand made of bare copper wires
• Core insulation: Halogen-free
• Halogen-free plastic foil wrapping
• Tinned-copper braiding
• Outer sheath made of special halogen-free coumpound, black
