Black Reeling 24G2.5

Benefits

• Can be used as hawser, drum and towing cable as well as for energy supply chains
• Integrated supporting braid prevents undesirable cable twists, and the formation of so-called corkscrew effects

Application range

• For use in hoists, transport and conveyor
  systems
• Reeling/unreeling during operation without fixing
• In dry or damp interiors, outdoors, or not more than 2 weeks without interruption in industrial water
• The application profiles for ÖLFLEX^® CRANE and ÖLFLEX^® LIFT cables can be found in the appendix, selection table A3
• The assembly and handling guidelines for ÖLFLEX^® CRANE cables can be found in the catalogue appendix, technical table T4; for ÖLFLEX^® LIFT cables please see the catalogue appendix, technical table T5

Product features

• Flame-retardant according IEC 60332-1-2
• Oil-resistant according to EN 60811-404
• Good chemical, thermal and mechanical-resistance
• UV-resistant

Norm references / Approvals

• <VDE> NSHTÖU cable type certification acc. VDE 0250-814

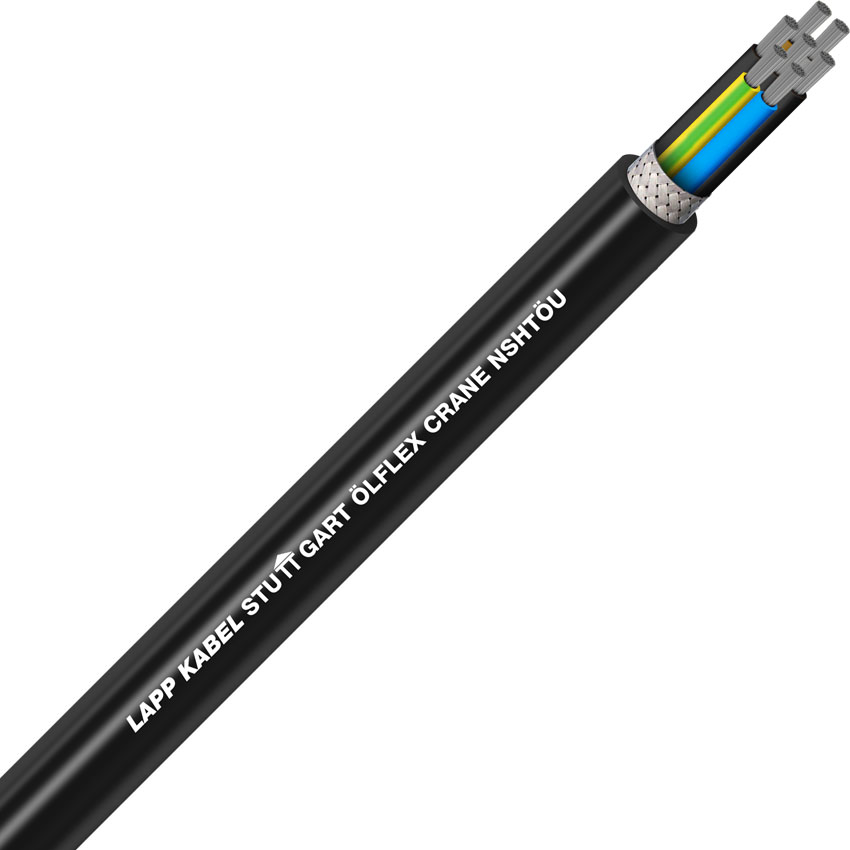

Product Make-up

• Strands of tinned-copper wires
• Core insulation: rubber compound, type 3GI3
• Support braid integrated in the outer sheath
• Outer sheath: rubber compound, type 5GM3
