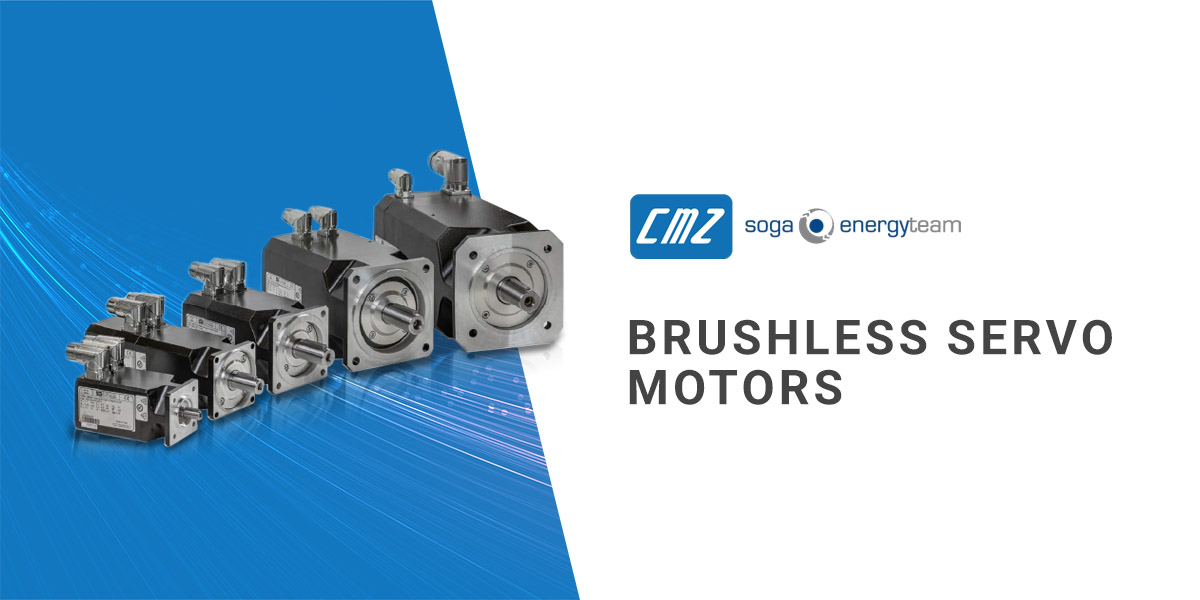

Brushless Servo Motors
#2988
Brushless Servo Motors
Brushless Servo Motors
CMZ offers a wide range of brushless synchronous servo motors designed for high-performance and precision in industrial automation.
The models are available with stall torque from 0,5 to 120 Nm.
Motors are available up to 6000 rpm, IP67, and stall torque 120 Nm.
per page
Brushless motor, 3000 rpm, 230 V, M0=7,2 Nm, Mn=6,7 Nm, Mpk=21 Nm, KT=0,88 Nm/A, Flange=102 mm, shaft=19 mm, keyed, brake, absolute encoder, flying connectors, IP65. CMZ-176248
$2734.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 230 V, M0=7,2 Nm, Mn=6,7 Nm, Mpk=21 Nm, KT=0,88 Nm/A, Flange=102 mm, shaft=19 mm, keyed, brake, resolver, flying connectors, IP65. CMZ-176100
$2086.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 230 V, M0=7,2 Nm, Mn=15,3 Nm, Mpk=110,4 Nm, KT=0,88 Nm/A, Flange=102 mm, shaft=28 mm, smooth, with brake,resolver, NO flying connectors, IP65. CMZ-182676
$1392.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 230 V, M0=7,2 Nm, Mn=6,7 Nm, Mpk=21 Nm, KT=0,88 Nm/A, Flange=102 mm, shaft=19 mm, smooth, NO brake, resolver, NO flying connectors, IP65. CMZ-176058
$1392.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 230 V, M0=7,2 Nm, Mn=6,7 Nm, Mpk=21 Nm, KT=0,88 Nm/A, Flangia=102 mm, Albero=19 mm, chiavetta, NO brake, resolver, connectors flying, IP65. CMZ-176044
$1483.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 230 V, M0=7,2 Nm, Mn=6,7 Nm, Mpk=21 Nm, KT=0,88 Nm/A, Flange=102 mm, shaft=19 mm, keyed, brake, resolver, NO flying connectors, IP65. CMZ-176548
$1920.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 230 V, M0=7,2 Nm, Mn=6,7 Nm, Mpk=21 Nm, KT=0,88 Nm/A, Flange=102 mm, shaft=19 mm, keyed, NO brake, resolver, NO flying connectors, IP65. CMZ-181434
$1392.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 230 V, M0=7,2 Nm, Mn=6,7 Nm, Mpk=21 Nm, KT=0,88 Nm/A, Flange=102 mm, shaft=19 mm, smooth, fly-wheel, resolver, NO flying connectors, IP65. CMZ-175618
$1634.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 230 V, M0=7,2 Nm, Mn=6,7 Nm, Mpk=21 Nm, KT=0,88 Nm/A, Flange=102 mm, shaft=19 mm, smooth, NO brake, resolver, NO flying connectors, IP65. CMZ-175809
$1392.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 400 V, M0=7,2 Nm, Mn=6,7 Nm, Mpk=21 Nm, KT=1,51 Nm/A, Flange=102 mm, shaft=19 mm, keyed, NO brake, resolver, NO flying connectors, IP65. CMZ-175758
$1392.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 400 V, M0=7,2 Nm, Mn=6,7 Nm, Mpk=21 Nm, KT=1,51 Nm/A, Flange=102 mm, shaft=19 mm, keyed, brake, resolver, NO flying connectors, IP65. CMZ-175759
$1996.00 (Each excl GST)
On Request
On Request
Brushless motor,3000 rpm, 400 V, M0=7,2 Nm, Mn=5,8 Nm,Mpk=21 Nm, KT=1,51 Nm/A,Flangia=102 mm, Albero=24 mm,chiavetta, SI brake F24, resolver,connectors flying, IP65 CMZ-187080
$1413.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 400 V, M0=7,2 Nm, Mn=6,7 Nm, Mpk=21 Nm, KT=1,51 Nm/A, Flange=102 mm, shaft=24 mm, smooth, NO brake, absolute encoder, flying connectors, IP65. CMZ-176472
$2131.00 (Each excl GST)
On Request
On Request
Brushless motor, 4500 rpm, 400 V, M0=7,2 Nm, Mn=5,8 Nm, Mpk=21 Nm, KT=0,87 Nm/A, Flangia=102 mm, Albero=24 mm, chiavetta, with brake, resolver, connectors flying, IP65. CMZ-185510
$2086.00 (Each excl GST)
On Request
On Request
Brushless motor, 5500 rpm, 400 V, M0=7,2 Nm, Mn=5,8 Nm, Mpk=21 Nm, KT=0,75 Nm/A, Flange=102 mm, shaft=24 mm, keyed, NO brake, resolver, flying connectors, IP65. CMZ-176416
$1413.00 (Each excl GST)
On Request
On Request
Brushless motor, 6000 rpm, 230 V, M0=7,2 Nm, Mn=5,6 Nm,Mpk=21 Nm, KT=0,40Nm/A, Flangia=102 mm, Albero=19 mm,chiavetta, with brake, resolver, NO conn. flying, IP65 CMZ-187802
$1996.00 (Each excl GST)
On Request
On Request
Brushless motor, 6000 rpm, 400 V, M0=7,2 Nm, Mn=5,6 Nm,Mpk=21 Nm, KT=0,65Nm/A, Flangia=102 mm, Albero=19 mm,chiavetta, with brake, resolver, CON conn. flying, IP65, UL CMZ-191786
$2086.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 400 V, M0=9,6 Nm, Mn=8,5 Nm, Mpk=28 Nm, KT=1,48 Nm/A, Flange=102 mm, shaft=19 mm, smooth, NO brake, resolver, NO flying connectors, IP65. CMZ-176046
$1599.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 400 V, M0=9,6 Nm, Mn=8,5 Nm, Mpk=28 Nm, KT=1,48 Nm/A, Flange=102 mm, shaft=19 mm, keyed, fly-wheel, resolver, NO flying connectors, IP65. CMZ-176022
$1840.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 400 V, M0=9,6 Nm, Mn=8,5 Nm, Mpk=28 Nm, KT=1,48 Nm/A, Flange=102 mm, shaft=19 mm, keyed, NO brake, resolver, NO flying connectors, IP65. CMZ-176023
$1599.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 400 V, M0=9,6 Nm, Mn=8,5 Nm, Mpk=28 Nm, KT=1,48 Nm/A, Flange=102 mm, shaft=19 mm, keyed, brake, resolver, NO flying connectors, IP65. CMZ-176477
$2202.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 400 V, M0=9,6 Nm, Mn=8,5 Nm, Mpk=28 Nm, KT=1,48 Nm/A, Flange=102 mm, shaft=19 mm, smooth, NO brake, resolver, flying connectors, IP65. CMZ-175503
$2217.00 (Each excl GST)
On Request
On Request
Brushless motor,4500 rpm, 400 V, M0=9,6 Nm, Mn=7,7 Nm,Mpk=28 Nm, KT=0,99 Nm/A, Flangia=102 mm, Albero=19 mm,Liscio, Volano, resolver, NO flying connectors, with brake, IP65. CMZ-187363
$2202.00 (Each excl GST)
On Request
On Request
Brushless motor, 4500 rpm, 400 V, M0=9,6 Nm, Mn=7,7 Nm, Mpk=28 Nm, KT=0,99 Nm/A, Flange=102 mm, shaft=19 mm, smooth, fly-wheel, NO brake, resolver, NO flying connectors, IP65. CMZ-182951
$1840.00 (Each excl GST)
On Request
On Request
Brushless motor, 1600 rpm, 230 V, M0=10,2 Nm, Mn=10 Nm, Mpk=30 Nm, KT=1,41 Nm/A, Flange=118 mm, shaft=24 mm, keyed, NO brake, resolver, NO flying connectors, IP65. CMZ-175710
$1671.00 (Each excl GST)
On Request
On Request
Brushless motor, 1600 rpm, 230 V, M0=10,2 Nm, Mn=10 Nm, Mpk=30 Nm, KT=1,41 Nm/A, Flangia=118 mm, Albero=24 mm, chiavetta, with brake, resolver, NO flying connectors, IP65. CMZ-183561
$2304.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 400 V, M0=10,2 Nm, Mn=9,5 Nm, Mpk=30 Nm, KT=1,51 Nm/A, Flange=118 mm, shaft=19 mm, keyed, NO brake, resolver, NO flying connectors, IP65. CMZ-176464
$1701.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 400 V, M0=10,2 Nm, Mn=9,5 Nm, Mpk=30 Nm, KT=1,50Nm/A, Flangia=130 mm, Albero=24 mm, keyed, NO brake, resolver, flying connectors, IP65, UL CMZ-189157
$1792.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 400 V, M0=10,2 Nm, Mn=9,5 Nm, Mpk=30 Nm, KT=1,51 Nm/A, Flange=145 mm, shaft=24 mm, keyed, NO brake, absolute encoder, flying connectors, IP65. CMZ-175563
$2440.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 400 V, M0=10,2 Nm, Mn=9,5 Nm, Mpk=30 Nm, KT=1,51 Nm/A, Flange=145 mm, shaft=24 mm, keyed, NO brake, resolver, NO flying connectors, IP65. CMZ-176021
$1701.00 (Each excl GST)
On Request
On Request
Brushless motor, 4500 rpm, 400 V, M0=10,2 Nm, Mn=8,5Nm,Mpk=30 Nm, KT=0,88Nm/A, Flangia=145 mm, Albero=24 mm,chiavetta, NO brake, resolver, NO flying connectors,IP65. CMZ-187082
$1792.00 (Each excl GST)
On Request
On Request
Brushless motor, 4500 rpm, 400 V, M0=10,2 Nm, Mn=8,5Nm,Mpk=30 Nm, KT=0,88Nm/A, Flangia=145 mm, Albero=24 mm,chiavetta, SI brake F24, resolver,NO flying connectors,IP65. CMZ-187084
$2319.00 (Each excl GST)
On Request
On Request
Brushless motor, 4500 rpm, 400 V, M0=10,2 Nm, Mn=8,5Nm, Mpk=30 Nm, KT=0,88Nm/A, Flangia=118 mm, Albero=24 mm, senza chiavetta, No brake,multi giro SKM36 ,con connectors flying, IP65, UL. CMZ-190808
$2719.00 (Each excl GST)
On Request
On Request
Brushless motor, 4500 rpm, 400 V, M0=10,2 Nm, Mn=8,5 Nm, Mpk=30 Nm, KT=0,88 Nm/A, Flange=145 mm, shaft=24 mm, keyed, NO brake, resolver, NO flying connectors, IP65. CMZ-176478
$1701.00 (Each excl GST)
On Request
On Request
Brushless motor, 5500 rpm, 400 V, M0=10,2 Nm, Mn=8 Nm, Mpk=30 Nm, KT=0,75 Nm/A, Flange=118 mm, shaft=24 mm, keyed, NO brake, resolver, flying connectors, IP65. CMZ-182042
$1792.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 400 V, M0=16,8 Nm, Mn=16 Nm, Mpk=46 Nm, KT=1,54 Nm/A, Flange=145 mm, shaft=24 mm, keyed, NO brake, absolute encoder, flying connectors, IP65. CMZ-175564
$3047.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 400 V, M0=16,8 Nm, Mn=16 Nm, Mpk=46 Nm, KT=1,54 Nm/A, Flange=145 mm, shaft=24 mm, keyed, brake, resolver, IP65. CMZ-188216
$3062.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 400 V, M0=16,8 Nm, Mn=16 Nm, Mpk=46 Nm, KT=1,54 Nm/A, Flangia=145 mm, Albero=28 mm, keyed, NO CMZ-190542
$3801.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 400 V, M0=16,8 Nm, Mn=16 Nm, Mpk=46 Nm, KT=1,54 Nm/A, Flangia=145 mm, Albero=28 mm, chiavetta, NO brake, resolver, connectors flying, IP65. CMZ-184759
$2399.00 (Each excl GST)
On Request
On Request
Brushless motor, 4500 rpm, 400 V, M0=16,8 Nm, Mn=14 Nm, Mpk=46 Nm, KT=0,88 Nm/A, Flange=145 mm, shaft=24 mm, smooth, brake, resolver, flying connectors, IP65. CMZ-176332
$3153.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 400 V, M0=22 Nm, Mn=19,2 Nm, Mpk=59 Nm, KT=1,34 Nm/A, Flange=145 mm, shaft=24 mm, keyed, NO brake, resolver, flying connectors, IP65. CMZ-175954
$2575.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 400 V, M0=22 Nm, Mn=19,2 Nm, Mpk=59 Nm, KT=1,34 Nm/A, Flange=145 mm, shaft=24 mm, keyed, brake, resolver, NO flying connectors, IP65. CMZ-175973
$3238.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 400 V, M0=22 Nm, Mn=19,2 Nm, Mpk=59 Nm, KT=1,34 Nm/A, Flange=145 mm, shaft=24 mm, keyed, NO brake, resolver, NO flying connectors, IP65. CMZ-176052
$2484.00 (Each excl GST)
On Request
On Request
Brushless motor, 1600 rpm, 400 V, M0=34 Nm, Mn=31 Nm, Mpk=90 Nm, KT=2,74 Nm/A, Flange=170 mm, shaft=32 mm, keyed, NO brake, resolver, flying connectors, IP65. CMZ-175704
$4452.00 (Each excl GST)
On Request
On Request
Brushless motor,3000 rpm, 400 V, M0=45 Nm, Mn=36 Nm,Mpk=125 Nm, KT=1,50 Nm/A,Flangia=170 mm, Albero=32 mm,chiavetta, NO brake, enc. SKM36,connectors flying,IP65 CMZ-187558
$6915.00 (Each excl GST)
On Request
On Request
Brushless motor,3000 rpm, 400 V, M0=45 Nm, Mn=36 Nm,Mpk=125 Nm, KT=1,50 Nm/A,Flangia=170 mm, Albero=32 mm,chiavetta, NO brake, resolver,connectors flying,IP65 CMZ-187555
$6135.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 230 V, M0=1,7 Nm, Mn=1,6 Nm, Mpk=4,9 Nm, KT=0,73 Nm/A, Flange=65 mm, shaft=11 mm, keyed, NO brake, resolver, NO flying connectors, IP67. CMZ-175819
$1077.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 230 V, M0=1,7 Nm, Mn=1,6 Nm, Mpk=4,9 Nm, KT=0,73 Nm/A, Flange=65 mm, shaft=11 mm, keyed, NO brake, resolver, NO flying connectors, IP65. CMZ-175708
$972.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 400 V, M0=1,7 Nm, Mn=1,6 Nm, Mpk=4,9 Nm, KT=1,26 Nm/A, Flange=65 mm, shaft=11 mm, keyed, NO brake, resolver, flying connectors, IP65. CMZ-176527
$1117.00 (Each excl GST)
On Request
On Request
Brushless motor, 3000 rpm, 400 V, M0=1,7 Nm, Mn=1,6 Nm, Mpk=4,9 Nm, KT=1,26 Nm/A, Flange=65 mm, shaft=9 mm, keyed, NO brake, resolver, flying connectors, IP65. CMZ-176150
$1117.00 (Each excl GST)
On Request
On Request
