Cat6A Flexible PVC Profinet 4 Pair

ETHERLINE® PN Cat.6A for flexible use, 4 pairs, PVC outer sheath

Free shipping on Web orders over $100

$19.67
(Per/m excl GST)
In Stock

Price breaks available, please log in

SKU: LAPP-2170930 Manufacturer part number: 2170930

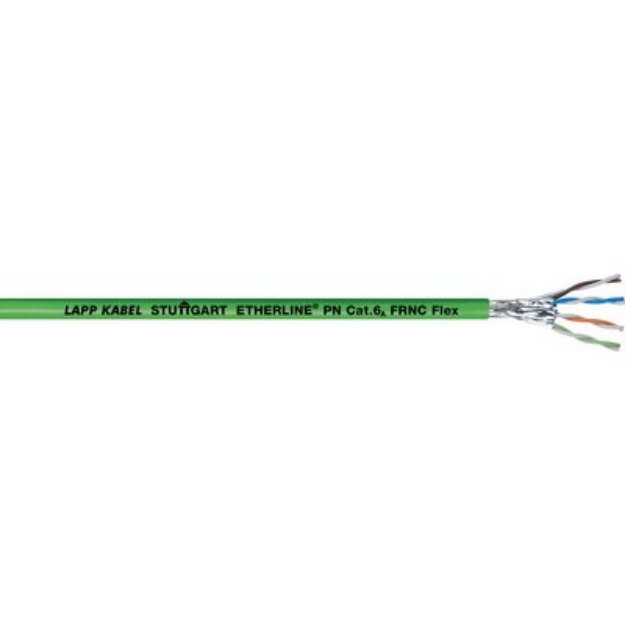

ETHERLINE® PN Cat.6A FLEX

Flexible use, Industrial Ethernet cable Cat.6A for flexible use, 4 pairs, PVC outer sheath with UL-approval, 4x2xAWG23/7

  • For PROFINET applications with 4 pairs
  • CAT.6A qualified for 10Gbit/s
  • Can be used in dry or damp rooms
  • Screened against interference
  • Can be used for Industrial Ethernet in harsh industrial environments
  • 4pair: 100Mbit/s up to 10 Gbit/s for Industrial Ethernet

Benefits

  • Can be used in dry or damp rooms
  • Screened against interference
  • Can be used for Industrial Ethernet in harsh industrial environments
  • 4pair: 100Mbit/s up to 10 Gbit/s for Industrial Ethernet
  • Application range for industrial secondary and tertiary cabling according to EN 50173-3 ISO/IEC 24702
  • Wiring of machines, tools, devices, appliances and control cabinets
  • suitable for EtherCAT and EtherNet/IP applications
  • For flexible applications (7-wire stranded conductor)

Features

  • CAT.6A for flexible application, qualified for 10Gbit/s
  • Meets the requirements according to CAT.6A, ISO/IEC 11801 and EN 50173
  • High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference
  • The oil-resistant PVC sheath enables usage in industrial environments
  • Peak operating voltage (not for power applications) 125V
  • Minimum bending radius Flexing: 15x outer diameter
  • Fixed installation: 8x outer diameter
  • Characteristic impedance nom. 100 Ω acc. to IEC 61156-5

Temperature ranges

  • Cable with PVC jacket Fixed installation: -40°C to +80°C
  • Occasional flexing: -10°Cto +70°C

Approvals

  • UL approvals see data sheet
  • ETHERLINE® PN Cat.6A Y FLEX: ECOLAB® Industry standard for innovation and efficiency in the field of professional cleaning and disinfection

Product Make-up

  • 7-wire tinned stranded copper conductor
  • Core insulation: PE
  • S/FTP: copper braid as overall screening and pair screening with aluminium compound foil
  • PVC jacket material
  • Colour: green (based on RAL 6018)



SKU LAPP-2170930
MPN 2170930

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Locally Stocked in NZ Only Show Stocked Items
Locally Stocked in Australia Only Show Stocked Items
Protocol CAT6A
Number of Pairs 4
