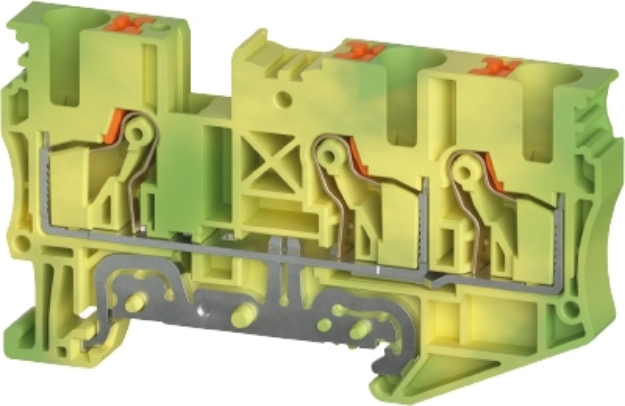

Push Terminal - 6mm - WTPN - Earth

Earth Terminal WTPN 6 D1/2 PE

The Wieland WTPN 6 D1/2 PE earth terminal is a green/yellow DIN rail terminal block with a 6 mm² nominal cross section and push-in connection. It supports conductor cross sections from 0.5 to 10 mm² and is rated for 1000 V.

Technical Details

• Nominal Cross Section: 6 mm²
• Color: Green/yellow
• Number Of Levels: 1
• Number Of Clamp Positions Per Level: 2
• Width/grid Dimension: 8 mm
• Insulating Housing: PA
• Inflammability Class Of Insulation Material Acc. With UL94: V0
• Mounting Method: DIN Rail (top Hat Rail)
• Terminal Blocks For Electrical Installations: Yes
• Connection Type: Push-in Connection//true
• Halogen Free: Yes
• Rated Voltage: 1000 V
• Rated Impulse Voltage: 8 kV
• Pollution Degree: 3
• Closing Plate Required: Yes
• Type Of Insulation Material: Thermoplastic
• Length: 74.6 mm
• Width: 8 mm
• Height: 43.5 mm
• Connection Type 1: Plug-in Connection
• Minimum Cross Section Solid: 0.5 mm²
• Maximum Cross Section Solid: 10 mm²
• Minimum Cross Section Fine Stranded: 0.5 mm²
• Maximum Cross Section Fine Stranded: 6 mm²
• Minimum Conductor Cross Section (Flex., Stranded) With Cable End Sleeve: 0.5 mm²
• Maximum Conductor Cross Section (Flex., Stranded) With Cable End Sleeve: 6 mm²
• Wire Strip Length: 12 mm
• Cross Section UL: 20-8 AWG
• Voltage UL: 600 V
• Cross Section CSA: 20-8 AWG
• Voltage CSA: 600 V

SKU WIE-5D.206.9155.0
MPN 5D.206.9155.0
EAN 4049088719196
