End Plate - 2.5mm - WTPN - Green

Name: End Plate - 2.5mm - WTPN - Green
SKU: WIE-0D.203.2255.7
Price: 76.00 AUD
Availability: InStock

4 Pole, end plate APWTPN 2.5 D2/2 Gn, for push terminals, green

$76.00 (100 Pack excl GST)

(100 Pack excl GST)

On Request

SKU: WIE-0D.203.2255.7 Manufacturer part number: 0D.203.2255.7 Manufacturer: WIELAND Price breaks available:

Select or Type Quantity

SKU: WIE-0D.203.2255.7 Manufacturer part number: 0D.203.2255.7 Manufacturer: WIELAND Price breaks available:

Free shipping on Web orders over $100

Overview
Specifications
Ask A Specialist

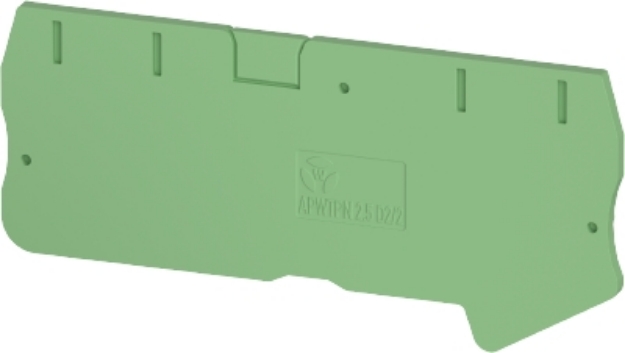

End Plate - 2.5mm - WTPN - Green

End plate APWTPN 2,5 D2/2 GN terminal is a 4-pole, green, push-connection solution for reliable electrical termination and distribution. Its construction is suited to organised, space-efficient installation in control and distribution assemblies. Additional design features include a 2 mm grid width, UL94 V0 flammability performance, and halogen-free construction.

Technical Details

Net weight single part: 2.8 g
Color: green
Type of end plate: yes
Thickness: 2 mm
Inflammability class of insulation material acc. with UL94: V0
Width/grid dimension: 2 mm
Length: 72.6 mm
Material: plastic
Height: 33.9 mm
Halogen free: yes

SKU WIE-0D.203.2255.7
MPN 0D.203.2255.7
EAN 4049088707360
