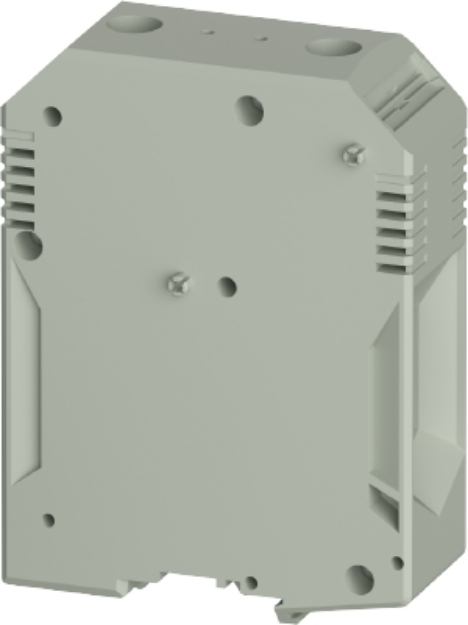

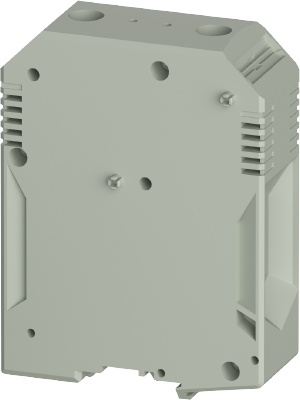

Screw Terminal - 240mm -WTN - Grey

Feed-Through Terminal WTN 240

The Wieland WTN 240 feed-through terminal provides reliable screw connections for conductors up to 240 mm², with a rated voltage of 1000 V and rated current of 415 A. It features a grey PA insulating housing, DIN rail mounting, and UL94 V0 flame resistance.

Technical Details

• Rated voltage: 1000 V
• Rated current: 415 A
• Rated impulse voltage: 8 kV
• Connection type: screw connection
• Number of levels: 1
• Number of clamp positions per level: 2
• Nominal cross section: 240 mm²
• Minimum cross section solid: 95 mm²
• Maximum cross section solid: 240 mm²
• Minimum cross section fine stranded: 95 mm²
• Maximum cross section fine stranded: 240 mm²
• Minimum conductor cross section (flex., stranded) with cable end sleeve: 95 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 185 mm²
• Mounting method: DIN rail (top hat rail)
• Color: grey
• Width/grid dimension: 43 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Halogen free: yes
• Closing plate required: no
• Length: 93 mm
• Width: 43 mm
• Height: 126 mm
• Wire strip length: 35 mm
• Torque conductor mounting: 19 Nm
• Cross section UL: 300-500 kcmil
• Voltage UL: 600 V
• Current factory wiring: 370 A
• Current field wiring: 370 A
• Cross section CSA: 300-500 kcmil
• Voltage CSA: 600 V
• Current CSA: 370 A

SKU WIE-5D.S99.0055.0
MPN 5D.S99.0055.0
EAN 4049088725838
