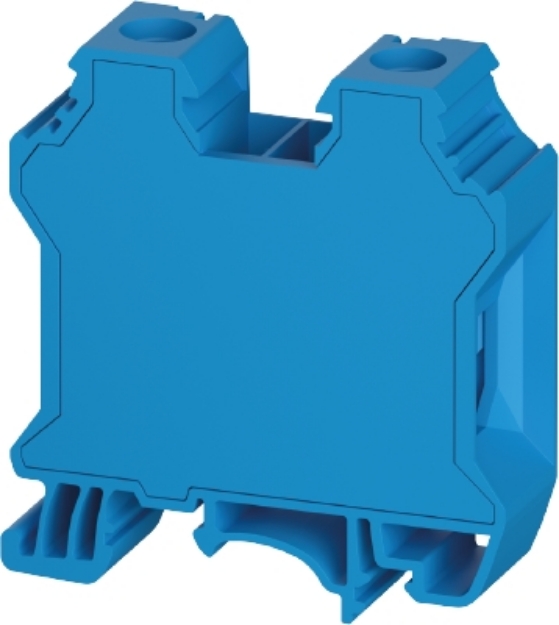

Screw Terminal - 35mm -WTN - Blue

Feed-Through Terminal Wtn 35 Bl

The WTN 35 BL feed-through terminal is a blue, single-level screw connection terminal for DIN rail mounting. It supports conductors from 1.5 mm² to 50 mm², with a rated current of 125 A and rated voltage of 1000 V.

Technical Details

• Nominal cross section: 35 mm²
• Color: blue
• Number of levels: 1
• Number of clamp positions per level: 2
• Width/grid dimension: 16 mm
• Insulating housing: PA
• Inflammability class of insulation material acc. with UL94: V0
• Mounting method: DIN rail (top hat rail)
• Connection type: screw connection
• Halogen free: yes
• Rated current: 125 A
• Rated voltage: 1000 V
• Rated impulse voltage: 8 kV
• Pollution degree: 3
• Closing plate required: no
• Type of insulation material: thermoplastic
• Length: 56.4 mm
• Width: 16 mm
• Height: 61.1 mm
• Minimum cross section solid: 1.5 mm²
• Maximum cross section solid: 50 mm²
• Minimum cross section fine stranded: 1.5 mm²
• Maximum cross section fine stranded: 35 mm²
• Minimum conductor cross section (flex., stranded) with cable end sleeve: 1.5 mm²
• Maximum conductor cross section (flex., stranded) with cable end sleeve: 35 mm²
• Wire strip length: 16 mm
• Torque conductor mounting: 3.5 Nm
• Cross section UL: 12-1/0 AWG
• Voltage UL: 600 V
• Current factory wiring: 150 A
• Current field wiring: 150 A
• Cross section CSA: 12-1/0 AWG
• Voltage CSA: 600 V
• Current CSA: 150 A
• Current CSA: 150 A

SKU WIE-5D.S35.0055.6
MPN 5D.S35.0055.6
EAN 4049088725524
