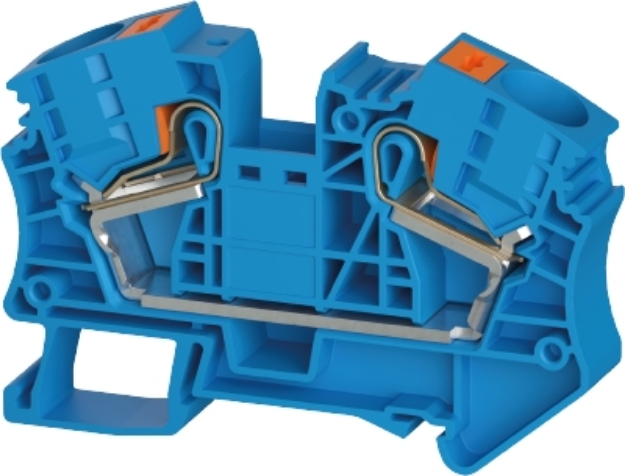

Push Terminal - 16mm -WTPN - Grey

Feed-Through Terminal WTPN 16 BL

The WTPN 16 BL feed-through terminal is designed for safe electrical installations with a rated voltage of 1000 V and rated current of 76 A. It features push-in and plug-in connections, a blue PA insulating housing, and DIN rail mounting for conductors up to 25 mm².

Technical Details

• Rated voltage: 1000 V
• Rated current: 76 A
• Rated impulse voltage: 8 kV
• Pollution degree: 3
• Closing plate required: yes
• Length: 76.5 mm
• Width: 12 mm
• Height: 54.3 mm
• Nominal cross section: 16 mm²
• Color: blue
• Number of levels: 1
• Number of clamp positions per level: 4
• Insulating housing: PA
• Inflammability class of insulation material according to UL94: V0
• Mounting method: DIN rail (top hat rail)
• Terminal blocks for electrical installations: yes
• Connection type: push-in connection
• Connection type 1: plug-in connection
• Minimum cross section solid: 0.5 mm²
• Maximum cross section solid: 25 mm²
• Minimum cross section fine stranded: 0.5 mm²
• Maximum cross section fine stranded: 16 mm²
• Minimum conductor cross section (flexible, stranded) with cable end sleeve: 0.5 mm²
• Maximum conductor cross section (flexible, stranded) with cable end sleeve: 16 mm²
• Wire strip length: 18 mm
• Cross section UL: 20-4 AWG
• Voltage UL: 600 V
• Current factory wiring: 82 A
• Current field wiring: 82 A
• Cross section CSA: 20-4 AWG
• Voltage CSA: 600 V
• Current CSA: 82 A
