Fire Rated 3G1.5

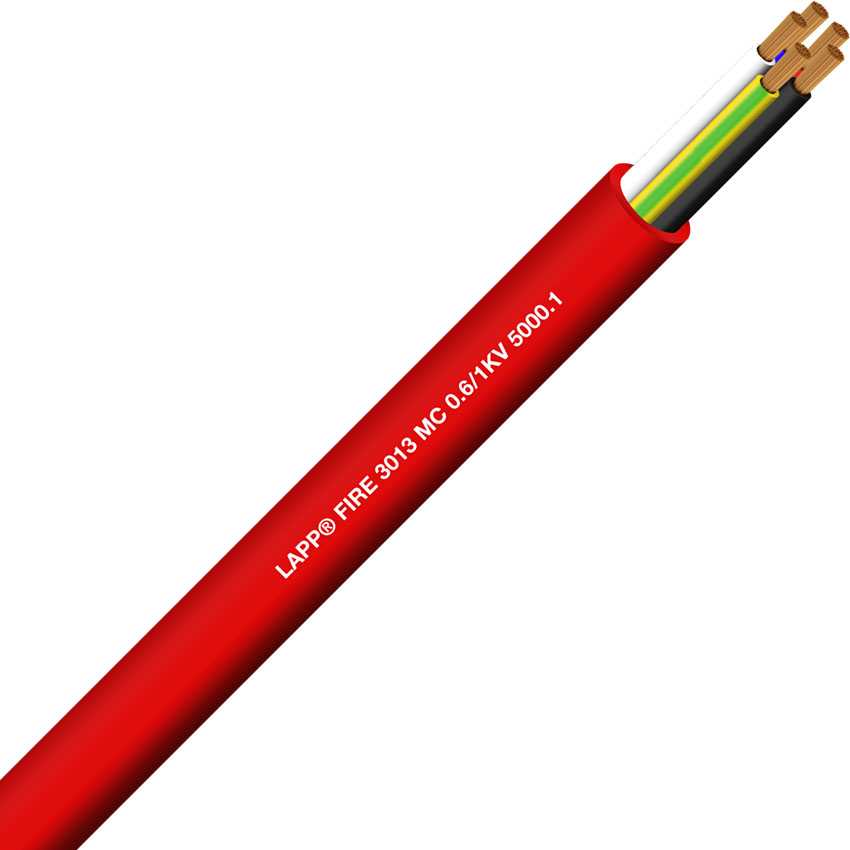

Fire 3013 MC 0.6/1kV are fire-resistant, flame-retardant power and control cables from LAPP. Designed to AS/NZS 5000.1 and AS/NZS 3013 standards for applications requiring circuit integrity during fire. Rated at 600/1000V and suitable for fixed installations where fire performance and mechanical robustness are required. Features copper conductors, fire-resistant layer, halogen-free insulation and a red outer sheath for fire system identification.

Benefits

• Maintains circuit integrity under fire conditions (WS52W fire rating).
• Flame retardant according to IEC 60332-3-24.
• Halogen-free insulation and sheath materials for reduced smoke and corrosive gases.
• Wide temperature range from -25°C to +110°C.
• High insulation resistance of minimum 1000 MΩ·km at 20°C.
• Flexible Class 5 bare copper conductors for easier installation.
• Minimum bending radius of 8D for practical site handling.
• Red outer sheath (RAL 3000) for clear identification of fire-rated circuits.

Technical Details

• Reference standards: AS/NZS 5000.1 and AS/NZS 3013.
• Conductor: Bare copper wire according to IEC 60228 Class 5.
• Fire resistance layer: MGT.
• Insulation: X-HF-110.
• Outer sheath: HFS-110-TP.
• Rated voltage: 600/1000V.
• Test voltage: AC 3500V for 5 minutes.
• Temperature range: -25°C to +110°C.
• Minimum insulation resistance: 1000 MΩ·km at 20°C.
• Minimum bending radius: 8 x cable diameter.

SKU LAPP-810003015
MPN 810003015
