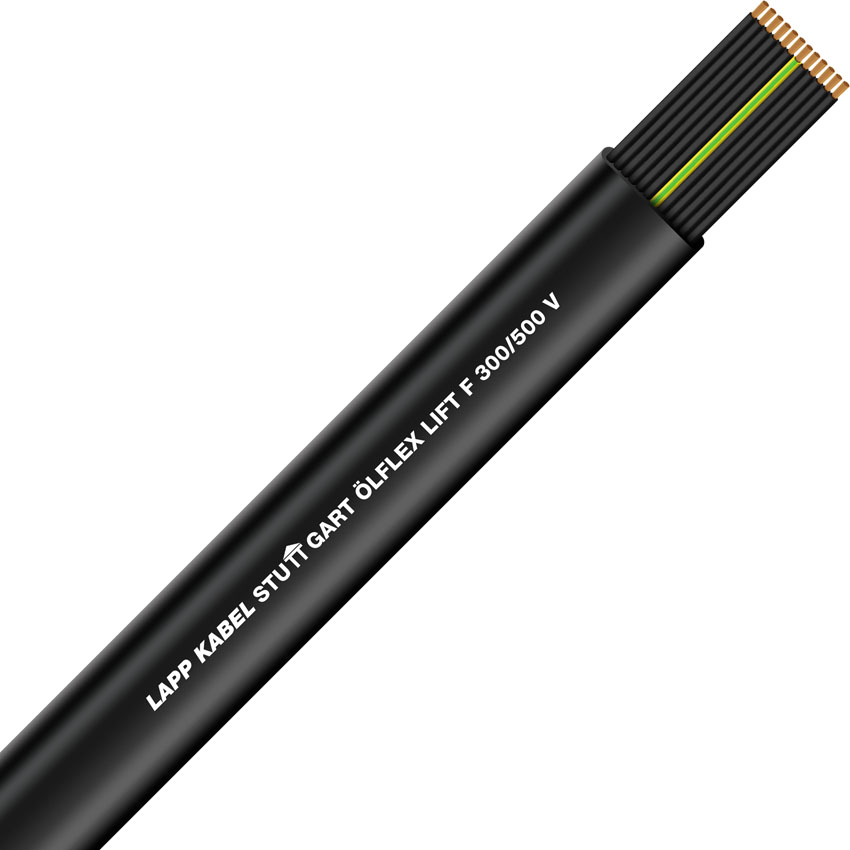

Flat Lift Flex 20G1 300/500V

Name: Flat Lift Flex 20G1 300/500V
SKU: LAPP-0042022
Price: 35.20 AUD
Availability: InStock

ÖLFLEX® LIFT F, flat, flexible, hoisting and conveyor systems PVC sheath 20G1 300/500V (19 + E)

$35.20 (Per/m excl GST)

(Per/m excl GST)

In Stock

SKU: LAPP-0042022 Manufacturer part number: 0042022 Price breaks available:

Select or Type Quantity

SKU: LAPP-0042022 Manufacturer part number: 0042022 Price breaks available:

Free shipping on Web orders over $100

Overview
Specifications
Downloads
Ask A Specialist

Benefits

Flat cables need less space than round cables
Smaller bending radii is possible

Application range

For hoisting equipment and conveyor systems
Indoor cranes and high-rack facilities
As supply line for moving machine parts
According to VDE definition, this can also be used as a lift control cable with up to 35 m suspension length, and a maximum speed of travel at 1.6 m/s
The application profiles for ÖLFLEX^® CRANE and ÖLFLEX^® LIFT cables can be found in the appendix, selection table A3

Product features

Flame-retardant according IEC 60332-1-2

Norm references / Approvals

Based on EN 50214/ VDE 0283-2 (H05VVH6-F or H07VVH6-F)
Meets the requirements of the harmonised PVC flat cable H07VVH6-F

Product Make-up

Conductor made of bare copper wires
Core insulation: Based on PVC
Outer sheath: Based on PVC

SKU

LAPP-0042022

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Locally Stocked in Australia	Only Show Stocked Items
Number of Conductors	20
Conductor Size	1mm
Colour	Black

Product Files

Type Name

Datasheet

LAPP-Main-Catalogue-2018-19 _ 178
