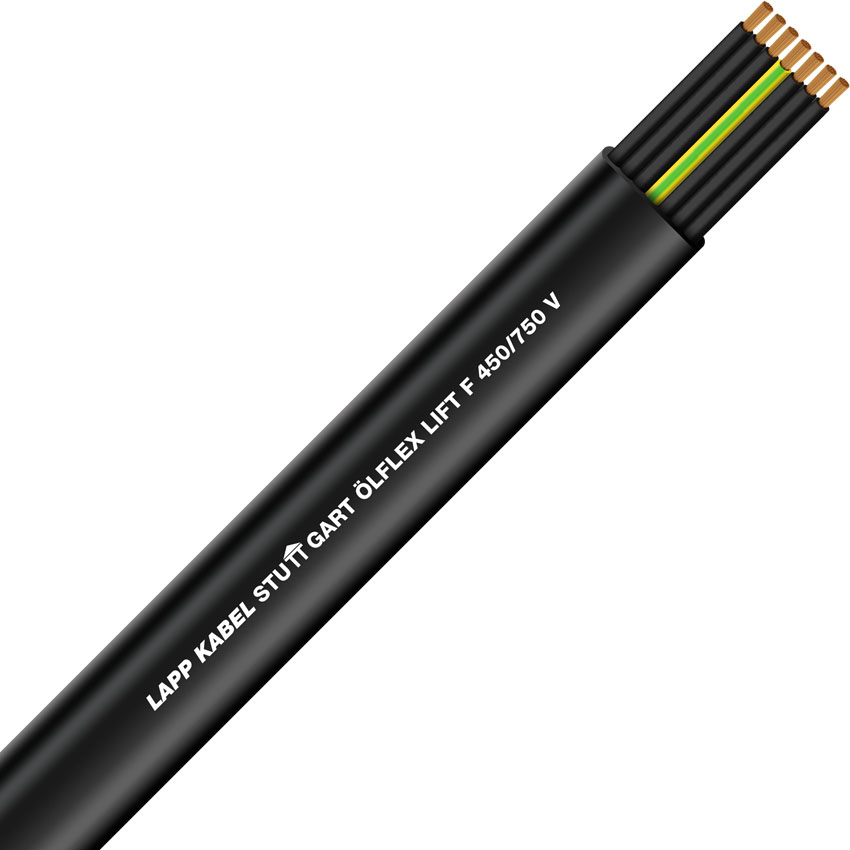

Flat Lift Flex 7G1.5 450/750V

Benefits

• Flat cables need less space than round cables
• Smaller bending radii is possible

Application range

• For hoisting equipment and conveyor systems
• Indoor cranes and high-rack facilities
• As supply line for moving machine parts
• According to VDE definition, this can also be used as a lift control cable with up to 35 m suspension length, and a maximum speed of travel at 1.6 m/s
• The application profiles for ÖLFLEX^® CRANE and ÖLFLEX^® LIFT cables can be found in the appendix, selection table A3

Product features

• Flame-retardant according IEC 60332-1-2

Norm references / Approvals

• Based on EN 50214/ VDE 0283-2 (H05VVH6-F or H07VVH6-F)
• Meets the requirements of the harmonised PVC flat cable H07VVH6-F

Product Make-up

• Conductor made of bare copper wires
• Core insulation: Based on PVC
• Outer sheath: Based on PVC
