Grey Screened PUR 3G1

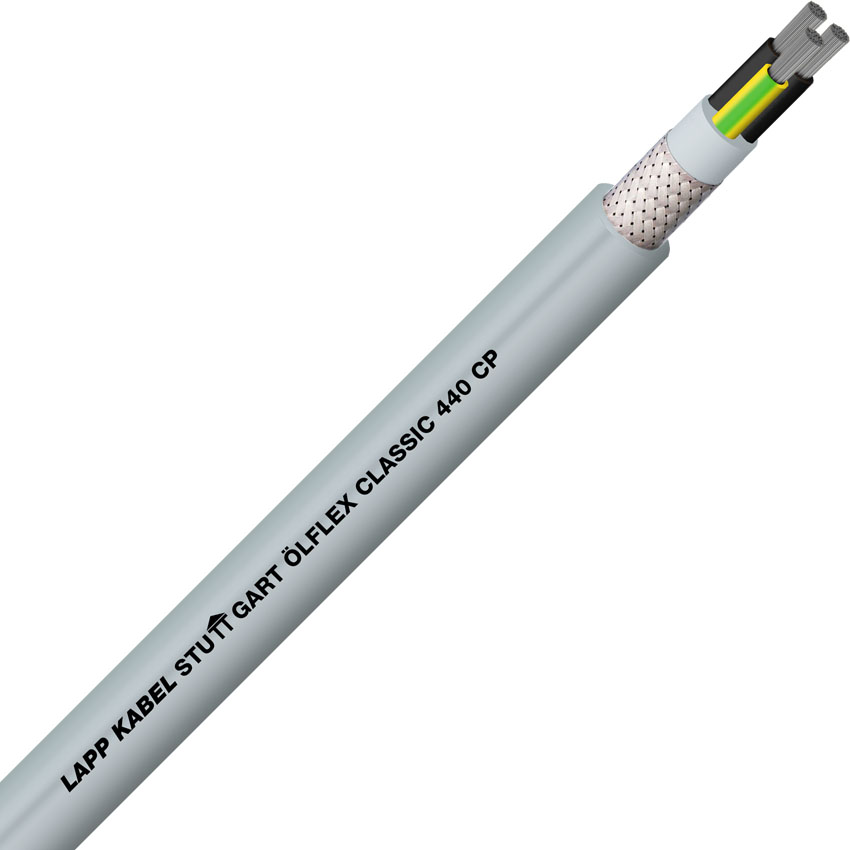

ÖLFLEX® 440 CP, Screened, PUR sheath, Halogen-Free, 300/500V, 3G1 (2 + E)

Free shipping on Web orders over $100

$18.75
(Per/m excl GST)
Global Stock
Quantity Breaks
1+
25+
100+
$18.75
$18.75
$18.75
SKU: LAPP-0012926 Manufacturer part number: 0012926

Benefits

  • Increased durability under harsh conditions thanks to robust PUR outer sheath
  • Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
  • Wide temperature range for applications in harsh climatic environments
  • Additional robustness thanks to inner sheath
  • Copper braiding screens the cable against
    electromagnetic interference

Application range

  • Industrial machinery and machine tools
  • Very suitable for oily wet areas within machinery and production lines that are subject to normal mechanical stress
  • Construction machinery
  • Agricultural equipment
  • For indoor and outdoor use

Product features

  • Resistant to oil and drilling fluids according to IEC 61892-4, Appendix D
  • Abrasion and notch-resistant
  • Halogen-free and flame-retardant
    (IEC 60332-1-2)
  • EMC-compliant
  • Flexible at low temperatures

Norm references / Approvals

  • VDE reg. no. 6582
  • Suitable for use in fresh water down to 10 m depth at max. water temperature of +40 °C according to EN 50565-2

Product Make-up

  • Fine-wire, tinned-copper conductor
  • Core insulation: TPE
  • Cores twisted in layers
  • Inner sheath made of TPE
  • Tinned-copper braiding
  • Special polyurethane outer sheath (PUR)
  • Sheath colour: Grey (similar RAL 7001)

Nominal voltage

  • U0/U: 300/500 V

Temperature range

  • Occasional flexing: -40°C to +90°C
  • Fixed installation: -50°C to +90°C

SKU
LAPP-0012926
We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.
Products specifications
Attribute name Attribute value
Number of Conductors 3
Conductor Size 1mm
Colour Grey
*
*
*
