Black Rubber Flex 5G4

Name: Black Rubber Flex 5G4
SKU: LAPP-16001303
Price: 44.10 AUD
Availability: InStock

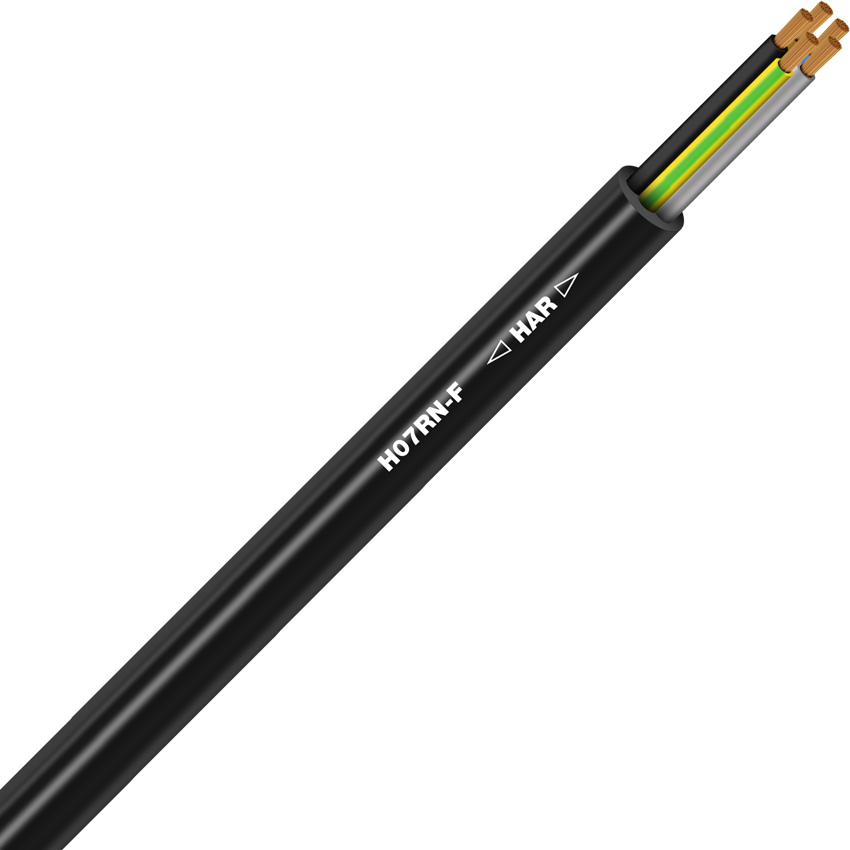

H07RN-F, Heavy duty rubber cable for industrial and agricultural use, HAR approved, 5G4 (4 + E)

$44.10 (Per/m excl GST)

(Per/m excl GST)

Global Stock

SKU: LAPP-16001303 Manufacturer part number: 16001303 Price breaks available:

Select or Type Quantity

SKU: LAPP-16001303 Manufacturer part number: 16001303 Price breaks available:

Free shipping on Web orders over $100

Overview
Specifications
Downloads
Ask A Specialist

Benefits

For mechanically more demanding applications
1000 V AC at protected + static laying
Arrangements made of single-core, rubber-sheathed cables H07RN-F can be used for short circuit-proof and short-to-ground-proof installations in accordance with IEC 60364-5-52/ HD 60364-5-52/ VDE 0100 Part 520

Application range

Handheld and power supply devices according to EN 50565-2
Medium, mechanical stress
Industrial, agricultural use
According to EN 50565-2: In dry, damp and wet rooms as well as for fixed installation e.g. on the plaster

Product features

Flame-retardant according IEC 60332-1-2
Oil-resistant according to EN 60811-404

Norm references / Approvals

<HAR> H07RN-F cable type approval according to EN 50525-2-21

Product Make-up

Bare copper wire according to HAR
Core insulation: rubber compound, type EI 4
Outer sheath: rubber compound, type EM2

SKU

LAPP-16001303

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Number of Conductors	5
Conductor Size	4mm
Colour	Black
