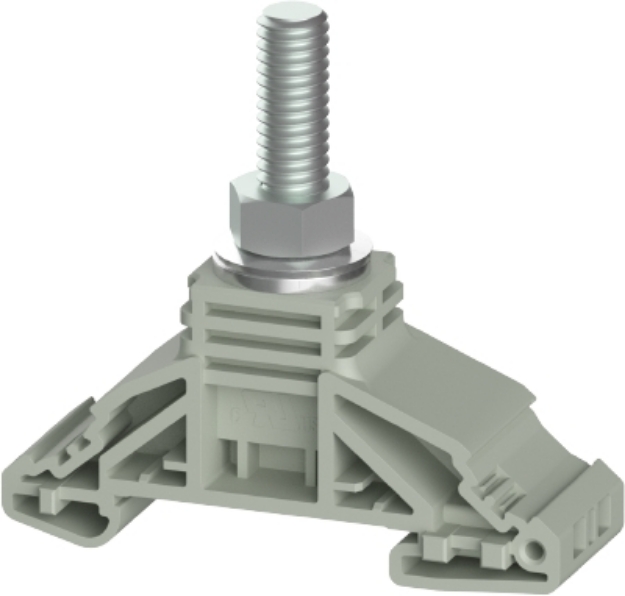

High Current Stud Terminal WRTN 50 M8

Name: High Current Stud Terminal WRTN 50 M8
SKU: WIE-5D.S50.1755.0
Price: 24.70 NZD
Availability: InStock

High current terminal rated voltage 1000V, rated current 150A, 50mm, bolt connection

$24.70 (Each excl GST)

(Each excl GST)

In Stock

SKU: WIE-5D.S50.1755.0 Manufacturer part number: 5D.S50.1755.0 Manufacturer: WIELAND Price breaks available:

Select or Type Quantity

SKU: WIE-5D.S50.1755.0 Manufacturer part number: 5D.S50.1755.0 Manufacturer: WIELAND Price breaks available:

Free shipping on Web orders over $100

Overview
Specifications
Downloads
Ask A Specialist

High Current Terminal WRTN 50 M8

The WRTN 50 M8 high-current terminal provides a 150 A, 1000 V bolt connection for conductors up to 50 mm². It features three clamp positions on one level, DIN rail mounting, a grey PA housing and UL94 V0 flame resistance.

Technical Details

Nominal cross section: 50 mm²
Color: grey
Number of levels: 1
Number of clamp positions per level: 3
Width/grid dimension: 21 mm
Insulating housing: PA
Inflammability class of insulation material acc. with UL94: V0
Mounting method: DIN rail (top hat rail)
Connection type: bolt connection
Halogen free: yes
Rated current: 150 A
Rated voltage: 1000 V
Rated impulse voltage: 8 kV
Closing plate required: no
Type of insulation material: thermoplastic
Length: 67 mm
Width: 21 mm
Height: 64 mm
Connection type 1: screw connection
Minimum cross section solid: 2.5 mm²
Maximum cross section solid: 50 mm²
Minimum cross section fine stranded: 2.5 mm²
Maximum cross section fine stranded: 50 mm²
Torque conductor mounting: 10 Nm
Cross section UL: 14-1/0 AWG
Voltage UL: 1000 V
Current factory wiring: 150 A
Current field wiring: 150 A
Cross section CSA: 14-1/0 AWG
Voltage CSA: 1000 V
Current CSA: 150 A

SKU WIE-5D.S50.1755.0
MPN 5D.S50.1755.0
EAN 4049088725623
