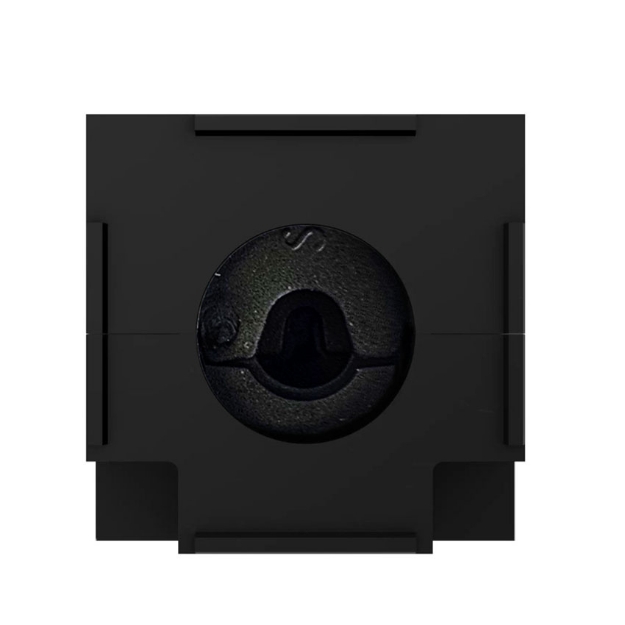

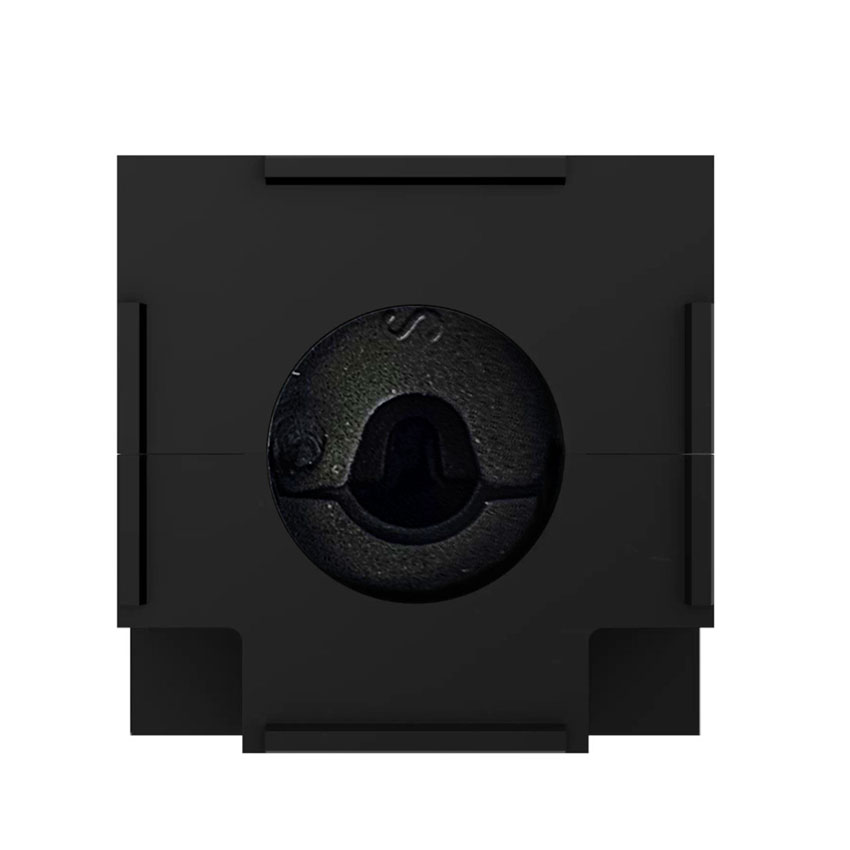

INSERT 20x20 Large

Small insert for 6-9mm cables

Free shipping on Web orders over $100

$2.45

(Each excl GST)

In Stock

Quantity Breaks

100+

500+

$2.45

SKU: LAPP-52220003 Manufacturer part number: 52220003

Qty:

Overview
Specifications
Contact Us
Downloads

Application range

For installation of harnessed cables
Used in areas where cables and wires need to be safely inserted into housings
Apparatus and switch cabinet construction
Electronic installations
Automation technology

Benefits

Variable range of clamping force
Vibration-safe module fixation
Strain relief
Oil resistance
Simplified servicing due to easy assembling and disassembling

Product Make-up

The SKINTOP® CUBE system consists of the SKINTOP® CUBE FRAME and the clip modules SKINTOP® CUBE MODULE.
For cut-outs for industrial connectors with standard defined boreholes.
For cut-outs for 16-pin industrial connectors (36 x 86 mm)
For cut-outs for 24-pin industrial connectors (36 x 112 mm)

Norm references / Approvals

UL File Nr. E349737

Note

SKINTOP® CUBE MODULE 20x20 BLIND can be used as a blind module and for clamping ranges 1 - 3 mm

Included

SKINTOP® CUBE FRAME including mounting material

SKU

LAPP-52220003

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Locally Stocked in Australia	Only Show Stocked Items
Locally Stocked in NZ	Only Show Stocked Items

Your name *

Your email *

Enquiry *

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Product Files

Type Name

DB52220000EN

Technical Information

Datasheet

LAPP-Main-Catalogue-2018-19 _ 722
