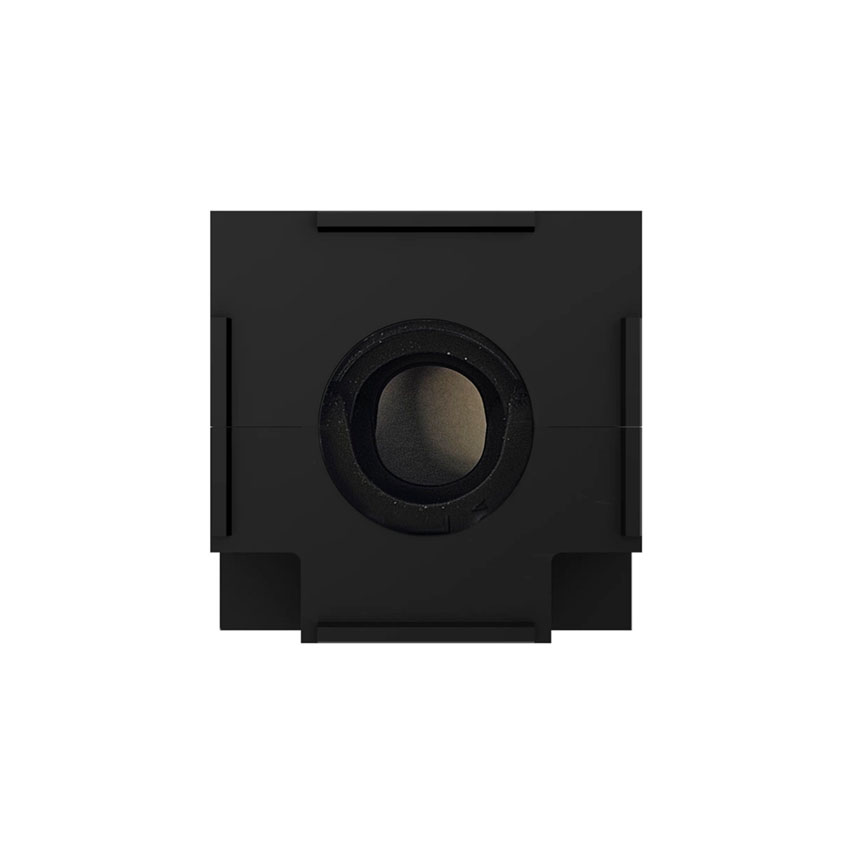

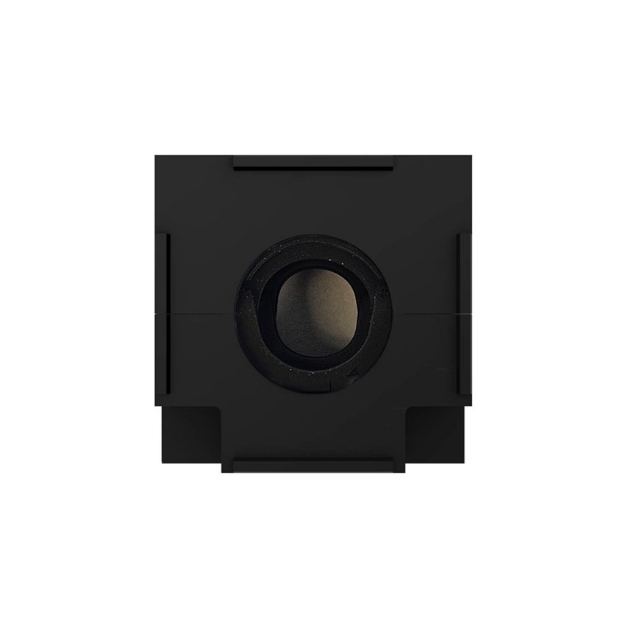

INSERT 40x40 Small

Large insert for 9-12mm cables

$26.40

(Each excl GST)
In Stock
Login for stock
Select or Type Quantity
SKU: LAPP-52220005 Manufacturer part number: 52220005 Price breaks available:

Free shipping on Web orders over $100

Application range

  • For installation of harnessed cables
  • Used in areas where cables and wires need to be safely inserted into housings
  • Apparatus and switch cabinet construction
  • Electronic installations
  • Automation technology

Benefits

  • Variable range of clamping force
  • Vibration-safe module fixation
  • Strain relief
  • Oil resistance
  • Simplified servicing due to easy assembling and disassembling

Product Make-up

  • The SKINTOP® CUBE system consists of the SKINTOP® CUBE FRAME and the clip modules SKINTOP® CUBE MODULE.
  • For cut-outs for industrial connectors with standard defined boreholes.
  • For cut-outs for 16-pin industrial connectors (36 x 86 mm)
  • For cut-outs for 24-pin industrial connectors (36 x 112 mm)

Norm references / Approvals

  • UL File Nr. E349737

Note

  • SKINTOP® CUBE MODULE 20x20 BLIND can be used as a blind module and for clamping ranges 1 - 3 mm

Included

  • SKINTOP® CUBE FRAME including mounting material

SKU
LAPP-52220005
