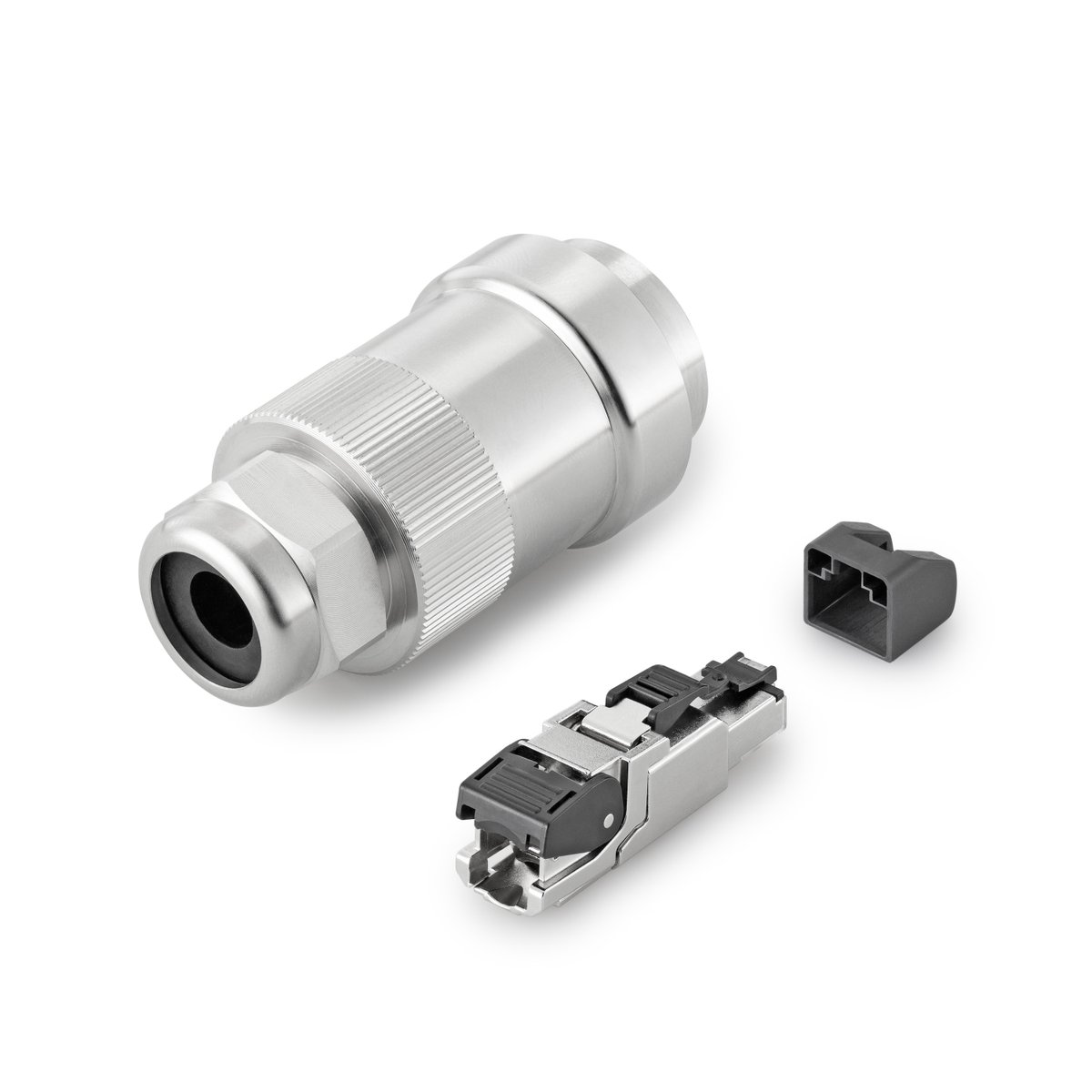

IP68 RJ45 Connector

IP68 RJ45 connector with screw thread

Free shipping on Web orders over $100

$141.00

(Each excl GST)

In Stock

Quantity Breaks

10+

50+

$141.00

SKU: LAPP-21700630 Manufacturer part number: 21700630 Manufacturer: ETHERLINE®

Qty:

Overview
Specifications
Contact Us
Downloads

Product features

Housing: brass nickel plated
IP68 when connected
Qualified for 10 Gigabit Ethernet
Optional sealing cap for sealing when not in use
Suitable for stranded cores with AWG27/7 -22/7 and for solid conductors with AWG26/1- 22/1
Suitable for cable diameters from 5.0 mm up to 9.0 mm

Whats Included

Metal Housing
RJ45 Quick Connector

Norm references / Approvals

Field assembly Industrial Ethernet connector, RJ45 according to IEC 60603-7-51
UL-listed (E-File E353543)

SKU

LAPP-21700630

We strive to provide you with the best information we can, considering the images are not to scale and do not represent detailed perspectives of the respected products. If you notice any errors or omissions in this information, please let us know using the contact us tab on this page.

Products specifications

Attribute name	Attribute value
Locally Stocked in NZ	Only Show Stocked Items
Locally Stocked in Australia	Only Show Stocked Items

Your name *

Your email *

Enquiry *

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Product Files

Type Name

Installation Guide

IP68 RJ45 Installation Guide

Installation Instructions

RJ45 Installation

Datasheet

LAPP-Main-Catalogue-2018-19 _ 460

Product features

Housing: brass nickel plated
IP68 when connected
Qualified for 10 Gigabit Ethernet
Optional sealing cap for sealing when not in use
Suitable for stranded cores with AWG27/7 -22/7 and for solid conductors with AWG26/1- 22/1
Suitable for cable diameters from 5.0 mm up to 9.0 mm
